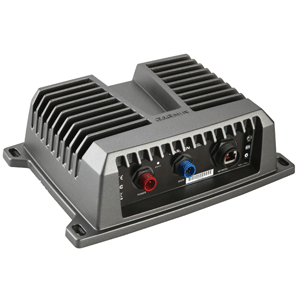

Garmin GSD24 Advanced Sonar Module - Remanufactured
Model: 010-N0957-00
The GSD 24 features a vastly improved digital sonar design for superior target
definition and deep-water performance.
With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the
GSD 24 brings high-definition imaging to your compatible Garmin chartplotter.
The system is dual frequency (50/200 kHz) capable and offers selectable transmit
power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at
depths of up to 5,000 ft (1,500 m). So whether you’re out sport fishing or just
keeping an eye on hazardous terrain and reef structures beneath your boat,
you’ll see a clearer picture with enhanced separation of images and deeper
bottom detection.
Thanks to the easy connectivity of the Garmin Marine Network, installation of
the GSD 24 is a snap. Once connected, your sonar data will be shared on any
compatible chartplotter on the network. Plus, the network's high-speed
connections ensure that you get ultra-fast screen updates with minimal delay.
Specifications
General |
CASE
MATERIAL |
Fully
gasketed, aluminum and steel housing |
DIMENSION |
8" 11.2"
3.2" (204 mm 284 mm 81 mm) |
WEIGHT |
5.27 lbs
(2.39 kg) |
WATERPROOF |
IPX7 |
TEMPERATURE
RANGE |
From 5°F to
158°F (from -15°C to 70°C) |
Electrical Features |
POWER INPUT |
10-35 V |
POWER USAGE |
40 W
maximum |
FUSE |
7.5 A |
COMPASS-SAFE DISTANCE |
15.75 in.
(40 cm) |
Sonar Features |
FREQUENCY |
50/200 kHz |
TRANSMIT
POWER |
25-2,000 W
rms |
MAXIMUM
DEPTH |
5,000 ft.
(1,524 m) |
Connections |
GARMIN
MARINE NETWORK PORTS |
1 |
What's in the Box:
- GSD 24 - Remanufactured
- Power cable
- Marine network cable (6 ft)
- Mounting hardware
- 8-pin Female to wire block
adapter
- Documentation
