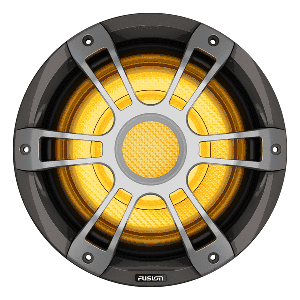

Fusion Signature Series 3i 12" CRGBW Sports Subwoofer - Grey

Signature Series 3i 12" CRGBW Sports Subwoofer - Grey

The Signature Series 3i range of premium marine speakers, subwoofers, wake tower speakers, and tweeters delivers crystal-clear audio and withstands marine conditions like never before.

With an enhanced design for the harsh marine environment, the Signature Series 3i range features new marinized connectors and a redesigned grille for easy installation and superior protection. Incorporating premium materials and superior acoustic engineering, you can enjoy that uncompromisingly pure listening experience on your boat, season after season.

With the included CRGBW LED illumination, the vibe on board is complete. Combining function and style, the Signature Series 3i range is made for life on the water, just like you.

Features:

• Delivers premium sound quality suited for the marine environment
• Marinized design with IP65 rating
• Designed to optimally work with Fusion stereo systems and amplifiers
• Custom DSP profiles with CRGBW illumination for a more ambient listening experience
• True-Marine™ design from Fusion
• Defined high-fidelity, low-frequency acoustics are a result of the excellent self-damping and bass reproduction

Technical Specifications:

• Peak Power - 1,400 Watts
• RMS Power - 700 Watts
• Nominal Impedance - 4 ohms
• Overall Dimensions (Diameter x Depth) - 14.02" x 10" (356 x 254 mm)
• Mounting Depth Clearance - 8.15" (207 mm)
• Sensitivity - 86 dB
• Weight - 24.1 lbs per speaker (10.93 kg)
• LED Lighting - Yes, CRGBW

• General
  Physical dimensions (diameter x depth)	14.02" x 10" (356 x 254 mm)
  Weight	24.1 lbs (10.93 kg)
  Water and dust rating	IP65
  Peak power (Watts)	1400 watts
  RMS power rating (watts)	700 WATTS
  Sensitivity (1 watt @ 1 metre)	86 dB
  Magnetic structure	114 OZ
  Frequency response	20 Hz—2 kHz
  Nominal impedance	4 ohm
  Recommended amplifier power (watts RMS)	200-1000 watts
  LED lighting	yes, CRGBW (sports style with LED models only)
  LED supply voltage	10.8—16 VDC (sports style with LED models only)
  LED load current @14.4 VDC (max)	300 mA (sports style with LED models only)
  Operating temperature range	32—122 degrees F (0—50 degrees C)
  Voice coil diameter	4"
  Cone material	Polypropylene cone with rubber surround
  Compass-safe distance	181" (460 cm)
  Subwoofer connection	Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
  LED connection (sports style with LED models only)	Flying lead with water-resistant 6-way connector, 5.9" (150 mm)
  Warranty	3 years
  Mounting Dimensions
  Mounting diameter clearance	12.05" (306 mm)
  Mounting depth clearance	8.15" (207 mm)
  Optimum enclosure recommendations
  Sealed enclosure volume (fully filled with absorption material)	2.12 cubic ft (60 L)
  Ported (vented) enclosure volume (lined with absorption material)	8.83 cubic ft (250 L)
  Port diameter	4" (101.6 mm)
  Port length	5" (127 mm)

• Quick Guide	View (pdf)
  Installation Guide	View (pdf)

In the Box:

• One (1) Subwoofer
• Mounting hardware
• Two (2) water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
• Instruction manual

*Sold as an Individual
