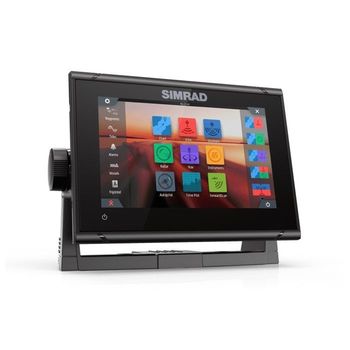

Simrad GO7 XSR 7" GPS Fishfinder C-MAP Pro AI 3in1 *Remanufactured
Simrad GO7 XSR 7-inch chartplotter and radar
display with Active Imaging 3-in-1 transducer and a C-MAP Insight Pro card. -
Remanufactured
Model: 055-14838-001
The GO series offers true ease of use with intuitive touchscreen controls that
smartphone and tablet users will find instantly familiar. Customise your home
screen with the features you use most, and see everything you need on screen at
once with adjustable split-screen views.
Simrad GO series displays are full-featured chartplotters with support for a
wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®,
and NV Digital® Charts. Mark waypoints with a simple touch, and assign
meaningful names that make them easy to find on your next trip.
Add a suitable transducer and your GO series display works as a powerful
fishfinder, complete with CHIRP technology for clear detection of fish
throughout the water column. Add an HDI or TotalScan transducer, and your
display also offers StructureScan HD sidescan imaging for a picture-like view of
fish-holding structure beneath and around your boat. Expand Your View with a
Simrad Radar Solution The Simrad GO7 XSR is a full-featured radar display with
plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™
Pulse Compression radar systems. Cruise confidently through crowded harbours,
navigate safely in poor visibility, keep an eye on distant weather cells, and
find flocks of feeding birds that hint at good fishing spots. Automatic tuning
helps to provide a clear radar picture in any conditions, while radar overlay
combines radar data with navigational charts for an easy-to-interpret view of
your surroundings. (end of section)
Automatic routing brings the convenience of in-car navigation to boating,
helping you to plot a route and get underway with less delay. Simply select a
destination, and your display will suggest the shortest, safest route. This
feature is available with Navionics+ or Navionics Platinum charts (Navionics
Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing). *
Automatic routing features are unavailable in North America.
Enjoy the most up-to-date charts on the water with Navionics SonarChart Live.
Available exclusively with Navionics charts, this feature creates a
depth-contour overlay using live sonar data from your display’s built-in
sounder. The results are shown on your GO series display and updated in
real-time as you fish or cruise.
Designed with power boating in mind, the Simrad GO series offers a unique Cruise
Charting page that brings together crucial navigation data and charts in one
easily readable display.
The optional SonicHub®2 module is the perfect companion to your GO series
display. Stream music from Bluetooth® connected tablets, smartphones, and other
mobile devices with this black-box audio system that eliminates the need for a
separate head unit.
The Simrad GO series provides access to online services including easy wireless
map downloads and software updates via any wireless hotspot. On the water,
connect your Simrad GO series display to your mobile devices, mirroring your
display’s screen on your smartphone or giving you full remote control from your
tablet with the free Link app.
Specifications
| Resolution |
800x480 |
| Screen
brightness |
1200 nits |
| Size and
type |
7" Diagonal
High Visibility Color TFT LCD |
| Backlight
color |
White |
| Viewing
angles |
Viewing
angles |
| Recommended
fuse rating |
3A |
| Power
consumption(max) |
20 W |
| Power
consumption nominal |
12 W |
| Supply
voltage |
12 V DC (10
- 17 V DC) |
| Ethernet |
1 x 5 pin
yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only
(unless unlocked) |
| Radar
compatibility |
Halo,
Broadband, HD Radars |
| Sonar |
Integrated
CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector. Connection to
any external sounder module is not supported. |
| NMEA 2000 |
1 x NMEA
2000 Micro-C port, 1 LEN |
| NMEA 0183 |
No
connection but exports NMEA 0183 over WiFi |
| Video In /
Out |
None |
| WiFi |
Internal |
| Bluetooth |
Internal |
| GPS antenna |
Internal |
| Internal |
Cold start
less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec |
| GPS
correction |
WASS, MSAS,
EGNOS, GLONASS, *Galileo ,*BeiDou. *Limited by network |
| GPS
position accuracy |
Horizontal
Accuracy 3 m (9.8 ft) |
| GP receiver
channels |
32 Channels |
| GPS update
rate |
10 Hz |
| AIS |
Receive AIS
data over NMEA 2000 only |
| Operating
temperature range |
-15°C to
+55°C (5° F to 131° F) |
| Storage
temperature range |
-20°C to
+60°C (4°F to 140°F) |
| Waterproof
rating |
IPX 6 and 7 |
| Shock /
vibration |
CE, C-Tick,
HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1" |
| Mounting
methods |
Bracket or
Panel |
| Weight |
1.320 kg
(2.91lb) |
| Interface |
Touch
screen, OP40 or OP50 controller via NMEA 2000 |
| Weather |
SiriusXM
via WM-3 (USA only), GRIB |
| Autopilot |
SiriusXM
via WM-3 (USA only), GRIB |
| Digital
switching |
BEP C-Zone |
| Autopilot
steering modes |
Auto, Nav.,
No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV.
(*Boat type set to Sail) |
| Autopilot
manoeuvres & turn patterns |
U-turn,
Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour
tracking |
| Internal
user data storage |
90MB |
| Waypoints,
routes and tracks |
6000
waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000
track points. |
| External
storage |
1 Micro SD
slot, max. 32GB (format FAT32 each). >32 GB cards require cards to be
formated to NTFS |
| Multimedia |
Via
SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Compliance |
CE, C-Tick,
HDMI, EN 60950-1:2006, EN 60945:2002 |
| Warranty
period |
2 Years |
| Dimensions |
197 mm x
141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket) |
|
