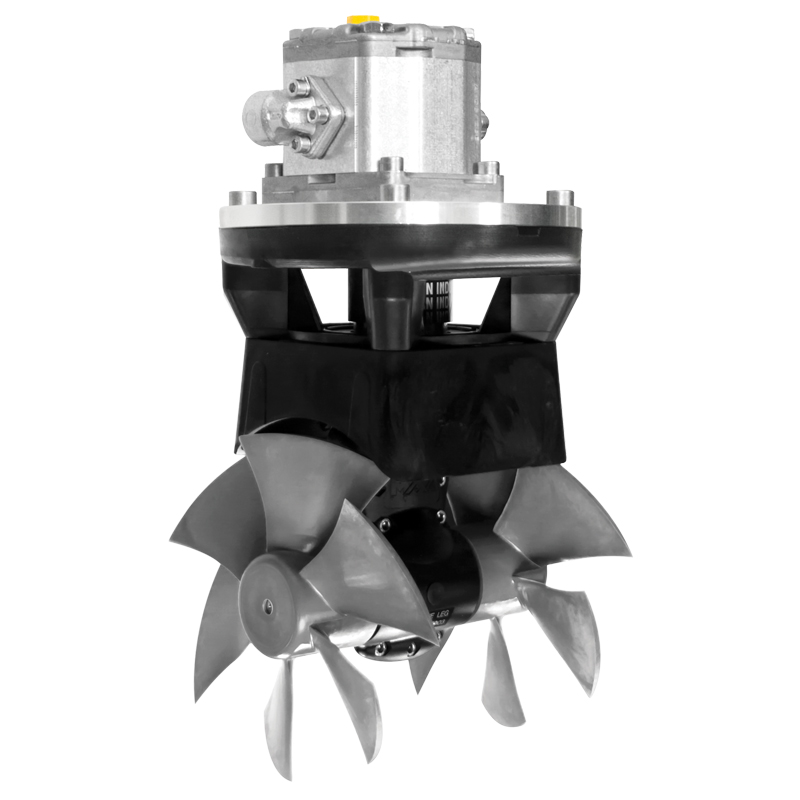

Max Power CT125 Hydraulic Tunnel Thruster, 11cc Composite 317588
No Tunnel, Controller, or Cable Included
Max Power’s range of hydraulic tunnel thrusters are ideal for commercial and
heavy displacement / high windage vessels from 40’ to 85’ feet. Designed for
long-term performance, these models are robust, include corrosion free
components and offer the following unique features:
- Corrosion free composite drive legs eliminate the need for periodic anode
changes and offer high manufacturing tolerances
- Drive legs are pre-filled with oil and sealed for life for zero
maintenance
- Case hardened spiro-conical gears guarantee a silent, smooth and durable
drive leg
- Line shields protect oil seals from fishing lines & fouling, ensuring
maintenance free operation
- Highly reputed brand of hydraulic motors used to ensure durability and
serviceability
- Electronic control boxes offering unique and unrivaled safety features to
protect against accidental misuse
The CT HYD 125 is designed for motor yachts and deep footed sailing yachts
ranging from 35’-57’. The smallest in the hydraulic tunnel thruster range, the
twin propeller CT HYD 125 is fabricated using composite materials, has a 185mm
diameter tunnel, a thrust rating up to 125/275 (kg/lbs) and integrates all the
unique features of the range.
* Several versions of each model are available. Please consult your
local Max Power distributor.
* Performance data is given for a thruster installed at an immersion depth of
one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter,
and this within a variation of + / - 6%. Longer tunnels will result in lower
thrust ratings and higher power consumption.
|
Code |
Thrust |
Propellers |
Power |
Weight |
A |
B |
C |
D |
E |
| 317588 |
140(kg) / 308(lbs) |
2 |
13.5(kw) |
12(kg) |
210(mm) |
210(mm) |
215(mm) |
185(mm) |
6 - 7(mm) |
|
**The price is subject to change at anytime without any notice. We
are not responsible for any typographical errors. Any products can be
cancelled from sale at any time.
** All Products sold here are Brand New unless specified
Otherwise and come with Full Manufacturer's Warranty
