Max Power CT80 Ignition Protected 185mm Tunnel Thruster 24V, 317614
No Tunnel, Controller, or Cable Included
Max Power offers a complete range of 12V/24V electric tunnel thrusters to
suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.
Designed for performance & durability, Max Power electric tunnel thrusters
offer many unique features:
- Corrosion free composite drive legs eliminate the need for periodic anode
changes and offer high manufacturing tolerances
- Drive legs are pre-filled with oil and sealed for life for zero
maintenance
- Case hardened spiro-conical gears guarantee a silent, smooth and durable
drive leg
- Line shields protect oil seals from fishing lines & fouling, ensuring
maintenance free operation
- High efficiency, purpose built DC motors ensure outstanding performance
and long runtime ratings
- Solid copper contact bars guarantee safe, high power connections
- Purpose built high specification DC contactors are both safe and durable
- Electronic control boxes offering unique and unrivaled safety features to
protect against accidental misuse
Available in 12V or 24V, the CT80-IP is perfectly suited to motor
boats and deep footed sailing yachts in the popular 25’-44’ size
range. With its 185mm tunnel diameter and thrust rating of up to
65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V
model, this powerful yet economic thruster integrates all the
unique features common to the range.
Ignition protected thrusters
are ideal for motor boats. Their unique feature is the
totally sealed housing around every electric part. This
feature provides optimal ignition protection because it doesn't
allow any fuel fumes enter the electric parts and cause spark
ignition. In addition, the sealed housing
prevents water
and humidity
from entering the electric parts area and
keeps it dry.
* Thrusters are designed to run at 10.75V on 12V units
and 22V on 24V units. Higher voltages will result in higher
thrust ratings, higher power consumption, and a reduced duty
cycle.
* Performance data is given for a
thruster installed at an immersion depth of one tunnel’s
diameter, in a tunnel no longer than twice the tunnel’s
diameter, and this within a variation of + / - 6%. Longer
tunnels will result in lower thrust ratings and higher power
consumption.
|

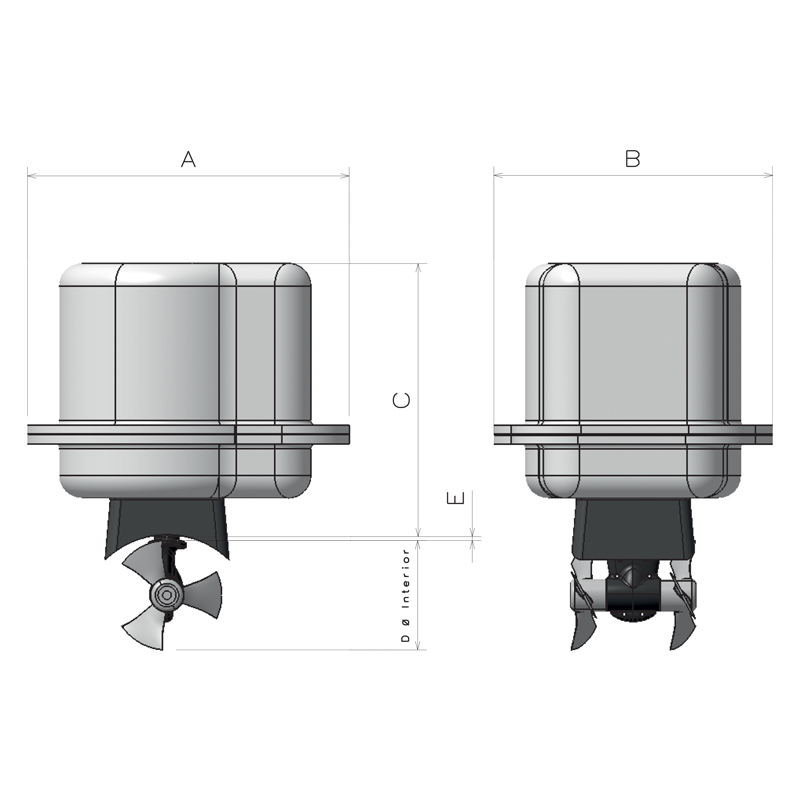

Code
|
Voltage
|
Thrust
|
Propellers
|
Power
|
Weight
|
A
|
B
|
C
|
D
|
E
|
|
317614
|
24V
|
75 / 165 (kg/lbs)
|
2
|
5.28 / 7.1 (kw/hp)
|
17.6 (kg)
|
320
|
255
|
375
|
185
|
6 - 7
|
|
**The price is subject to change at anytime without any notice. We
are not responsible for any typographical errors. Any products can be
cancelled from sale at any time.
** All Products sold here are Brand New unless specified
Otherwise and come with Full Manufacturer's Warranty
 WARNING:
This product can expose you to chemicals including Di-n-hexyl Phthalate (DnHP)
which is known to the State of California to cause reproductive harm, and
Vinyl Chloride which is known to the State of California to cause cancer. For
more information go to P65Warnings.ca.gov.
