Max Power Compact Retractable Thruster 70 kg, 12V (Truck Freight)
Designed to suit the latest generation of high performance yachts, the
Compact Retract is fitted, as optional original equipment, to a wide range of
new sailboats from 35’ to 50’ and is available in 12V (Compact Retract 70) and
24V (Compact Retract 80).
In the box:
Joystick, Control System, cable Support Plate.
When closed this retractable thruster has no negative effect on the yacht’s
performance, even in light winds where tunnel thrusters can greatly reduce
sailing performance. Manufactured using lightweight composites, the Compact
Retract is the most silent unit available today and is easily fitted to most
yachts with a master cabin up against the forward bulkhead. Its low profile and
simple installation make this cost effective unit by far the most popular
retractable thruster unit on the market today.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V
units. Higher voltages will result in higher thrust ratings, higher power
consumption, and a reduced duty cycle.
* Performance data is given for a thruster deployed at an immersion depth of
one tunnel’s diameter, and this within a variation of + / - 6%.
* Only available with bronze driveleg
|
Code
|
Voltage
|
Thrust
|
Propellers
|
Power
|
Weight
|

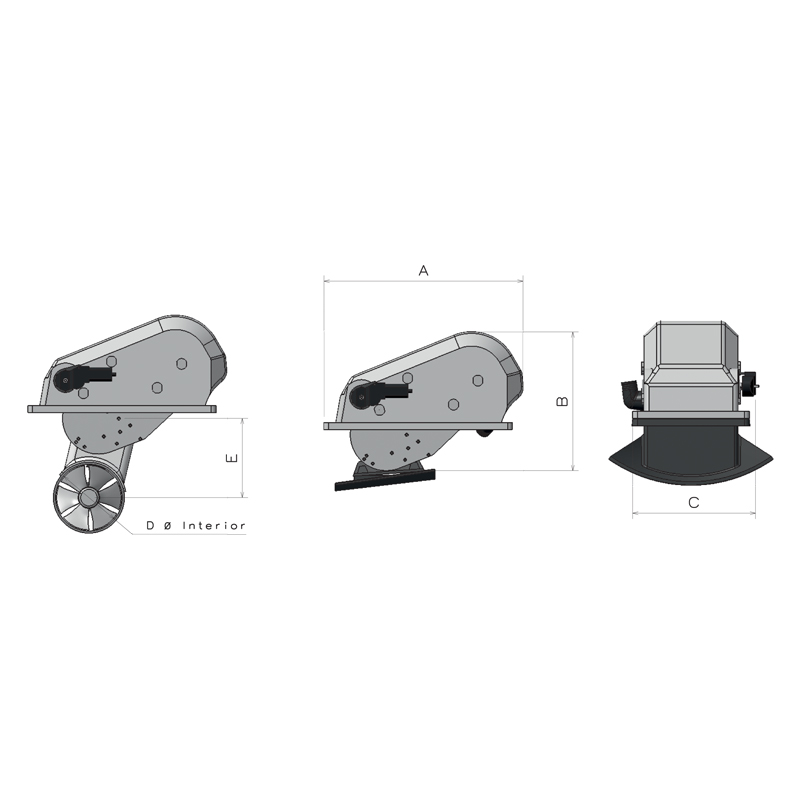

A
|
B
|
C
|
D
|
E
|
|
317821
|
12V
|
70(kg) / 154(lbs)
|
2
|
4.79(kw) / 6.4(hp)
|
40(kg)
|
555(mm)
|
388(mm)
|
385(mm)
|
185(mm)
|
241(mm)
|
|
