Furuno DFF3 Black Box Sounder Module 1,2,3Kw
BLACK BOX
NETWORK SOUNDERModel DFF3
Powerful, greatly improved target detection and presentation capability
Furuno's DFF3 is a network sounder featuring Furuno
Digital Filter (FDF) Technology designed for use with NavNet series devices.
This digital Network Sounder can turn any NavNet display into a powerful,
dual-frequency digital fish finder. The compact network sounder unit connects
directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If
it is connected to an Ethernet hub that has multiple displays attached, each of
those displays will have access to the Network Sounder.
Features
-
Utilizes FDF (Furuno Digital Filter) signal processing technology
-
Output power 1 to 3 kW
-
Furuno Free Synthesizer (FFS) allows for selectable operating frequency of 28
to 200 kHz
-
Dual frequency, alternate transmission
-
Compatible with Airmar transducer ID technology
-
Heaving compensation with use of the SC-30/50/110
-
Variable Transmission Rate for different depth ranges allows for more detailed
observation of bottom
-
Dedicated 6-pin temperature sensor port available
-
WAGO connection for ease of installation
Specifications
FISH FINDER
|
Frequency |
The synthesized transducer works with dual frequencies between 28 and 200
kHz |
|
Transducer |
1/2/3 kW |
|
Range Scale |
Max. 3,000 m |
OTHERS
|
Waterproofing |
IPX0 |
|
Power Supply |
12-24 VDC, 30 W 3.5 A |
|
Size |
300 (H） x 380 (W） x 120 (D) |
|
Weight |
3.8 kg |

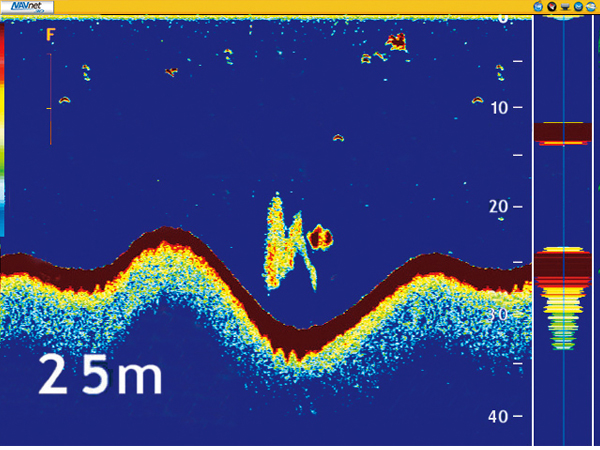

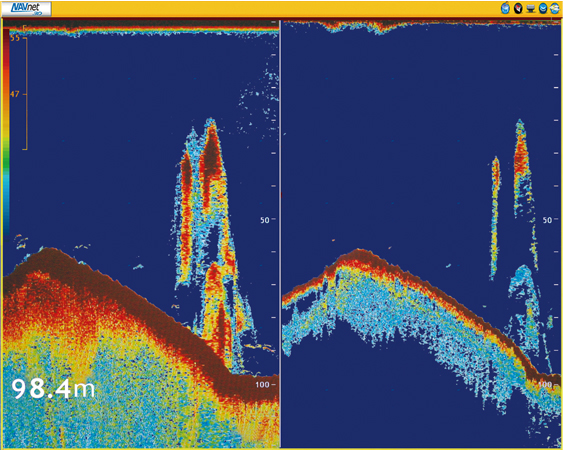

Screenshots

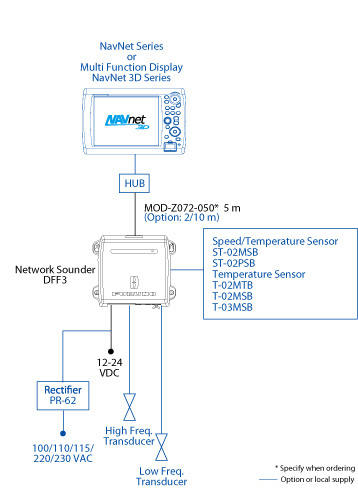

Interconnection Diagram
Technical Info
Interfacing and Installation
Equipment List
Standard
-
 NETWORK
FISH FINDER DFF3-E
1 UNIT
-
POWER
CABLE 3.5 M
1 PC
-
NETWORK
CABLE 5 M
1 PC
-
INSTALLATION
MATERIALS AND SPARE PARTS
1 SET
|
