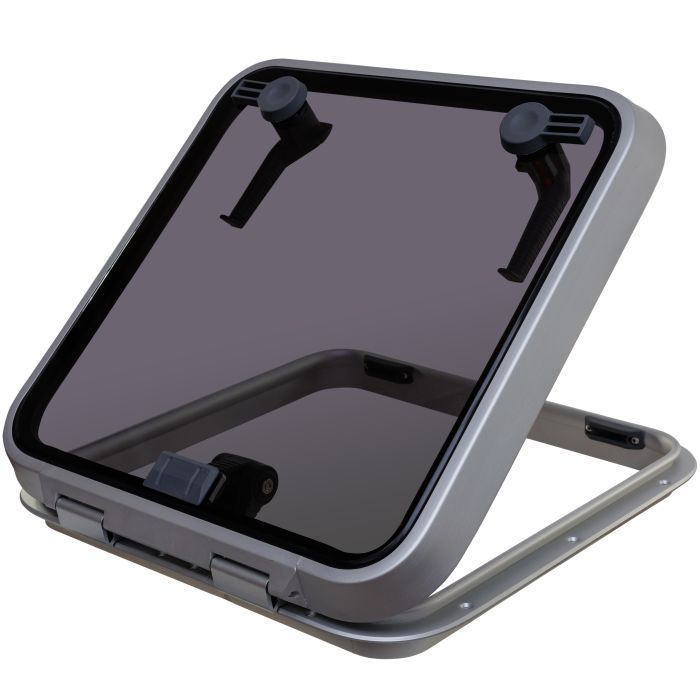

With its classic style, the Ocean Hatch is fitted to thousands of boats
around the world. Its rugged construction provides the ultimate protection
against the elements, whatever conditions you might face.
■ Friction
levers hold the lid open in any position up to 95°
■ Anodised aluminium frame for corrosion resistance
■ All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).
Mounting Instructions
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4").
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) |
Acrylic Colour |
Hatch Weight (lb) |
Acrylic Window Thickness (in) |
| 1" Flange |
Smoke Grey |
11 |
1/2 |
Dimensions
| Length X (in) |
Width Y (in) |
Height Z (in) |
Radii R (in) |
Hinge Length HX (in) |
Hinge Width HY (in) |
Cut-Out Length Flat X1 (in) |
Cut-Out Width Flat Y1 (in) |
Cut-Out Radii Flat R1 (in) |
| 20 1/16 |
20 1/16 |
1 11/16 |
3 |
3/16 |
11 7/8 |
17 3/8 |
17 3/8 |
1 11/16 |
