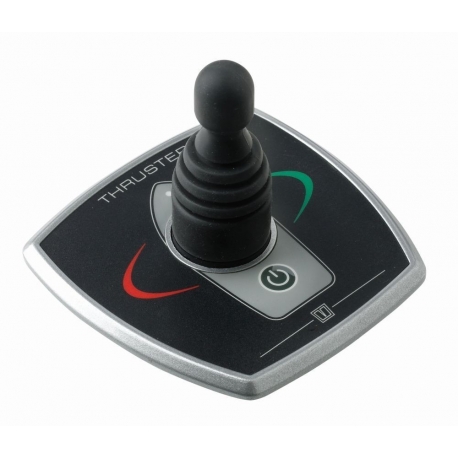

VETUS Bow Thruster Joystick BPAJ
Control panel with high quality coated aluminium cover for VETUS bow and stern
thrusters. Waterproof to IP66 from the front.
Thanks to the deluxe design and the high quality coated aluminium front, this
new bow or stern thruster panel will be an asset to your dashboard! The panel
can be fitted in a 52 mm diameter hole, making installation quick and easy using
a standard hole saw. It is backwards compatible with other VETUS bow thruster
panels. That is to say; the connector plug is the same and the panels fit over
the existing panel holes. The panel is provided as standard with a switched
outlet (max 3 A) for switching extra equipment and is waterproof to IP66. The
panel also features:
- a built-in time
delay, to prevent thruster damage caused by reversing the direction of
rotation too quickly
- a warning
signal with automatic shutdown in the event of continuous running for more
than 2 minutes
- protection
against accidental operation (child lock)
- automatic shut
off after 30 minutes inactivity
-
|
CONTROL |
Joystick |
|
BUILD-IN DEPTH (INCHES) |
3 1/2" |
|
DIMENSIONS (HEIGHT X WIDTH) (INCHES) |
Cover 3 13/16 x 3 23/32"; cut-out diameter 2 3/64" |
|
VOLTAGE (V) |
12 and 24 V |
|
WITH TIME DELAY |
Yes |
Technical documentation
-
BPAJ, BPAS, BPJR, BPSR Thruster control panels datasheet US (EN)
-
-
 View/Download
-
BPAJ, BPAS, BPJR, BPSR Wiring diagrams (EN, NL, DE, FR, ES, IT, NO, SE, SU)
-
-
View/Download
-
BPAJ, BPAS, BPJR, BPSR Overall dimensions (EN, NL, DE, FR, ES, IT, NO, SE, SU)
-
-
View/Download
|
