Maxwell Anchormax, Rope Hauling Only, Single Direction, 12V

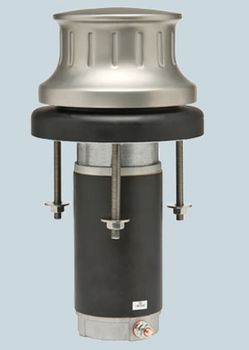

ANCHORMAX Capstan Winch
An extremely versatile vertical capstan or general purpose electric winch for
use as an anchor winch, pot hauler or davit winch.
Features
- The ANCHORMAX™ has an extremely high power to weight ratio.
- The compact, fully sealed gearbox is driven by a vertically mounted,
- permanent magnet motor. Intrusion below decks is minimised making the
- design ideal for boats from 5m (16ft) to 10m (32ft). Fitting to the boat
is simplicity itself as no dismantling of the winch is required.
- The ANCHORMAX™ gear housings are marine-grade alloy and the
- drum is stainless steel. It is supplied as a single direction (clockwise)
unit, complete with deck switch, fastenings, template and fitting
instructions.
- The ANCHORMAX™ is not recommended for use to haul halyards.
- The ANCHORMAX™ is not recommended for use to haul chain.
-
In the Box
- Anchormax winch
- Foot Switch
- Installation hardware
- Instruction sheet
SPECIFICATIONS
|
Model
|
Anchormax
|
|
Maximum Pull
|
386kg
850lb
|
|
Power
|
12V, 500W
|
|
Weight
|
8kg
17.6lbs
|
|
Max. Boat Length
|
10m
33'
|
|
Max. Boat Weight
|
4 tons
|
|
@nominal working load
|
24m/min
75' per min
|
|
|
Cable sizes:
Up to 5m run use 15mm2 cable
5m to 10m run use 25mm2 cable
over 10m run use 35mm2 cable
* Not supplied with but recommended
|
