Furuno BBDS1 Black Box Fishfinder
BLACK BOX
BOTTOM DISCRIMINATION SOUNDERModel BBDS1
BBDS1 revolutionizes finding fish with new bottom discrimination fish finding
feature

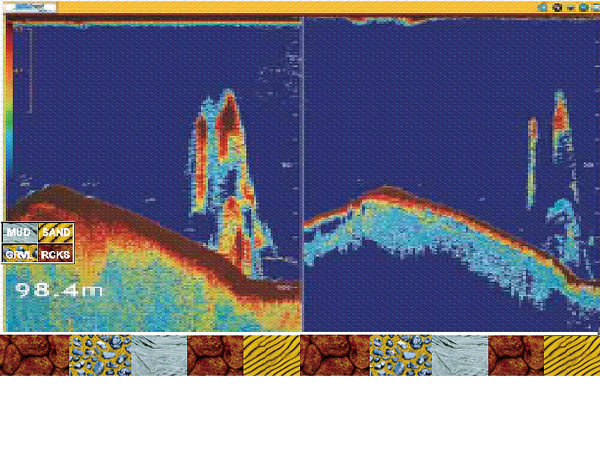

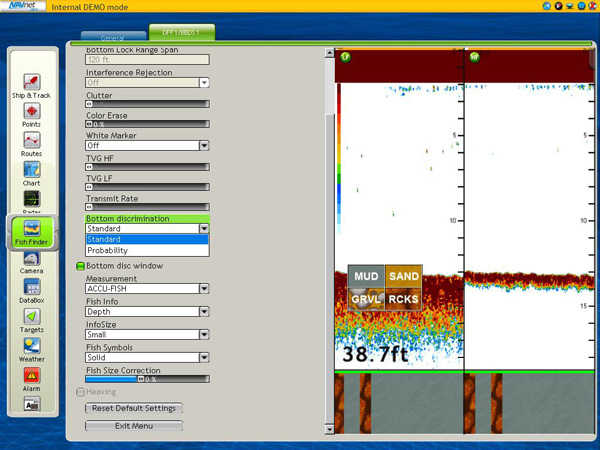

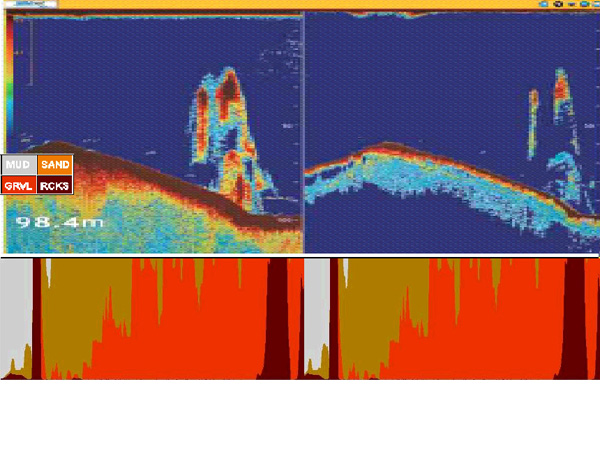

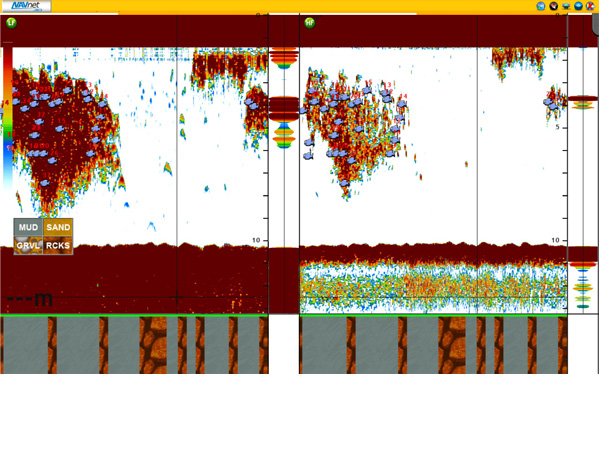

With this new BBDS1, NavNet 3D/TZtouch/TZtouch2 can show
bottom discrimination information from the depth sounder echogram.
Features
-

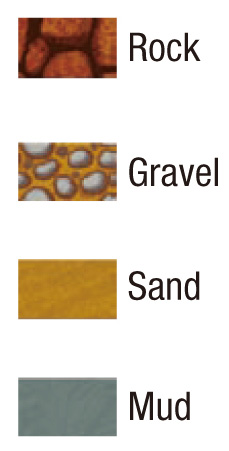

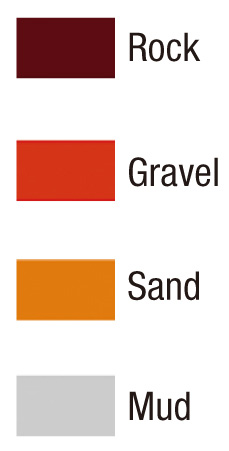

Indicates a major component of the bottom among mud, sand, gravel, and rock.
-
Works with NavNet series
-
Dual-frequency 50/200 kHz
-
FDF (Furuno Digital Filter) makes the picture clearer and easier to
discriminate between baitfish and larger target species
-
FDF technology helps adjust gain and output power as well as suppresses main
bang (echoes just below transducer)
-
8/16/64 color echo presentations
-
8 range scales up to 1200 m
-
Selectable output power of 600W or 1kW
-
Audio and visual alarms for water depth, fish echoes and water temperature*
*Requires appropriate sensors
-
Wide variety of transducer options
-
Selectable automatic cruising or fishing modes to suit your style of boating
-
Automatic function for detecting fish and bottom in both shallow and deep
water
-
White line feature helps discriminate fish lying near the bottom
Specifications
FISH FINDER
|
Frequency |
50/200 kHz |
|
Transducer |
600 W or 1 kW (Optional Matching Box, MB-1100 may be required) |
|
Range Scale |
Max. 1,200 m |
OTHERS
|
Waterproofing |
IPX0 |
|
Power Supply |
12-24 VDC, 30 W, 3.5 A |
|
Size |
219 (H） x 255 (W） x 90 (D) |
|
Weight |
1.2 kg |
Equipment List
Standard
-
 BOTTOM
DISCRIMINATION SOUNDER BBDS1-E
1 UNIT
-
POWER
CABLE 3.5 M
1 PC
-
NETWORK
CABLE 5 M
1 PC
-
INSTALLATION
MATERIALS AND SPARE PARTS
1 SET

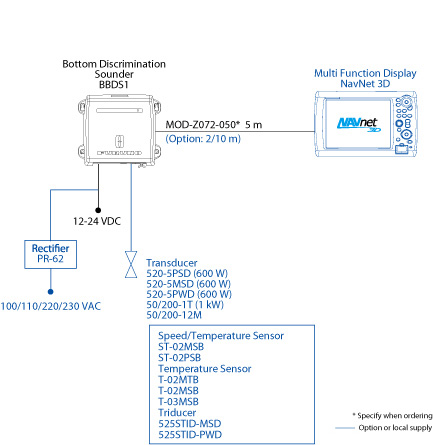

Interconnection Diagram
Technical Info
Interfacing and Installation
|
