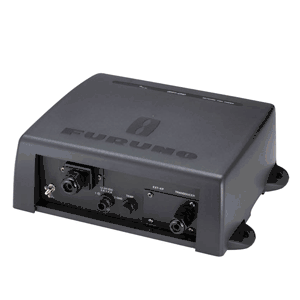

Furuno DFF1-UHD TruEcho CHIRP Sounder Module
BLACK BOX
NETWORK SOUNDERModel DFF1-UHD
Find More Fish With TruEcho CHIRP™ Fish Finder
An advanced technology for professional or enthusiastic
fisherman. Designed to operate over a broadband range of frequencies utilizing a
broadband transducer, the TruEcho CHIRP™ network sounder DFF1-UHD delivers
significant advancements in signal clarity and target definition. The clear
presentation of the sounder marks individual game fish and bait fish, even when
tightly schooled together.
Features
-
Designed to operate over a broadband range of frequencies utilizing a
broadband transducer
-
Clear presentation separates bottom structure from bottom fish, and bait fish
from game fish
-
Network fish finder works with NavNet 3D/TZtouch/TZtouch2
Specifications
FISH FINDER
|
Frequency |
Dual frequency 50 ± 20 & 200 ± 25 kHz |
|
Transducer |
1 kW |
|
Range Scale |
Max. 1,200 m |
|
ACCU-FISH™ |
Available (Advanced) |
|
Bottom Discrimination |
Available (Advanced) |
OTHERS
|
Waterproofing |
IP55 |
|
Power Supply |
DC 12-24 V, 2.8-1.4 A |
|
Size |
316(H) X 380(W) X 120(D) |
|
Weight |
3.1 kg |
Screenshots
Equipment List
Standard
-
 NETWORK
FISH FINDER
DFF1-UHD-E
-
POWER
CABLE 3.5 M
1 PC
-
NETWORK
CABLE
1 PC
-
INSTALLATION
MATERIALS AND SPARE PARTS
1 SET

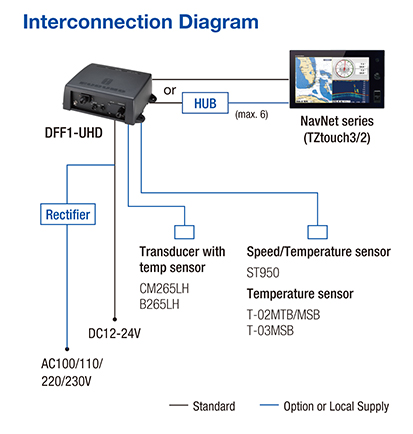

Interconnection Diagram
Technical Info
Interfacing and Installation
|
