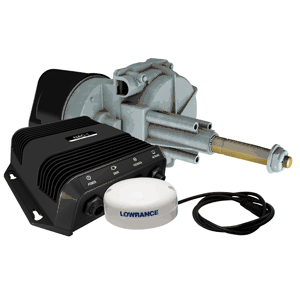

Lowrance Outboard Pilot Cable Steer Pack, 000-11749-001
Outboard Pilot Cable-Steer Pack
Available for HDS Gen2 and Gen3 units
The autopilot pack for Lowrance High Definition System (HDS)
displays, provides automatic steering for cable-steer outboard motors. An
extra pair of hands when you need it, the Outboard Pilot, featuring Lowrance
SmartSteer™ control from your HDS Gen2 or Gen3, will steer to a heading,
waypoint or route.
Everything you need in one box to fit an autopilot to your cable-steer
outboard motor, the Outboard Pilot lets you focus on fishing activity while
keeping the boat on course. When connected to a Lowrance HDS Gen2 or Gen3, the
Outboard Pilot can steer to a waypoint or along a route, select a turn pattern
or simply hold a constant heading. The Lowrance SmartSteer™ user interface
allows you to easily switch between electric-steer, trolling-motor control and
outboard motor control directly from your HDS display. And, with your HDS
display, you can easily convert trails to routes – so you can retrace a previous
track and get your boat back to the dock from your fishing area.
The Lowrance Outboard Pilot is recommended for single and dual outboard
set-ups, on boats that are 30 feet and less, in length.
Key Features
- Steer your outboard motor to a heading, waypoint, route or cursor, with
control from your HDS Gen2 or Gen3 display.
- New Lowrance SmartSteer™ interface provides control of both your
cable-steer outboard motor, as well as the MotorGuide Xi5 Pinpoint
electric-steer trolling motor.
- "One-touch" route creation from saved trails.
- Repeat your path with automatic turn patterns.
- Recommended for single-outboard setups, on boats that are 30 feet and
less, in length.
- VRF (Virtual Rudder Feedback) – simplifies pilot installation --
eliminating the need for a rudder position sensor.
- Easy setup – straightforward guide steps you through first-time install.
- Easy-to-install, plug-and-socket connection – with no complex terminal
wiring.
- Supported by Lowrance Service program
- Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive
unit.
- Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
- Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage
feedback interface
-
What’s in the box
NAC-1 Autopilot Computer 000-11769-001
The brains behind your Lowrance Outboard Pilot system. It contains the
steering computer and electronics for the drive unit motor
|
|
|
Helm-1 -1 Cable-steer helm drive unit 000-11771-001
This drive unit replaces your manual helm-drive unit on single cable
installations. Compatible with Morse 290, 304411 and Teleflex SSC52 cables.
Includes voltage rudder-feedback sensor, and is only compatible with NAC-1.
|
|
|
Point-1AP Heading and GPS Sensor
Provides extremely accurate and rapid boat position update, along with
heading for accurate boat direction at any speed
|
|
|
Auto/Standby Button
Mounts anywhere on dash and changes Autopilot from STBY to AUTO mode with
one press.
|
|
|
NEMA 2000 Starter Kit
Contains: 4 Way NMEA2000 Block, Terminator Kit, NMEA2000 Power Cable, one
each of 2,6 and 15 ft NMEA2000 cables.
|
What's in the box?
-
N2KEXT-15RD,CABLE,MICRO-C, 4,5M
-
N2KEXT-2RD,CABLE,MICRO-C, 0,6M
-
TR-120-KIT
-
N2KEXT-6RD,CABLE,MICRO-C, 1,8M
-
N2K, MICRO-C, 4-WAY BLOCK
-
NAC-1 AUTOPILOT COMPUTER
-
HELM-1 FOR NAC-1 & NAC-2
-
MICRO-C POWER CABLE ONLY - NO T CONN
|
