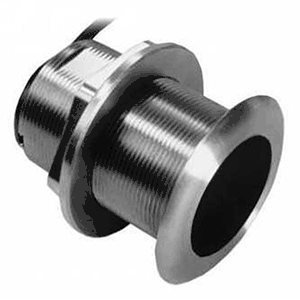

The SS60 is a 600 W, 50/200 kHz transducer which integrates Airmars popular,
Tilted Element feature. This Tilted Element transducer has the ceramic element
fixed at a 20 or 12 or 0 deg angle within the housing. When the transducer is
installed almost flush to the hull, the tilt of the element corrects for the
hull deadrise. By orienting the beam directly down, it ensures maximum echo
returns to the transducer and more accurate depth readings.
Available in three Tilted Element models:
- Fixed 20
tilted version for 16 to 24 hull deadrise angles
- Fixed 12
tilted version for 8 to 15 hull deadrise angles
- 0 deg Tilt
for 0 to 7 deg deadrise angles
-
Depth and fast-response water temperature sensing
-
600 W of power
-
Dual-frequency element:
-
50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200')
-
200 kHz with a 12 beamwidth for depth performance to 206 m (700')
-
Perfect for center-console or trailered boats
-
Low-profile housing extends only 5 mm (3/16") below the hull
-
No effect on your boats running performance
-
Stainless steel housing for use in all hull materials
-
Available in a bronze housing (B60) for use in a fiberglass or wood hull
Spec:
Acoustic Window: Urethane
Cable-Length: 10
m (33')
Common Use: Leisure/Yachting,
Fishing
Conventional Beam: 45/12
Country of Origin: USA
Cross Reference: 010-11868-20
Frequency Band: 50/200
kHz
Hole Size: 60
mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)
Housing Material: Stainless
Steel
Hull Material: Compatible
w/ all hull materials
Max Depth: Low
frequency- 366 m (1200'), High frequency- 206 m (700')
Max Vessel LOA: Up
to 8 m (26')
Mounting Style: Thru-Hull
Power Rating: 600
W
Retractable housing: No
Sensor Connector: MM
Single or Dual Frequency: Conventional
Dual Frequency
Transducer Functions: Depth,
Temperature
Usable Shaft Length: 68.5
mm (2.70")
Weight: 1.4
kg (3 lb.)
Mix and Match Series: 5-Pin
600 Watt
