Furuno DRS6ANXT/3 25w 72nm Solid-State Radar Antenna with 3.5' Open Array & 10m cable
The NXT chapter in Radar technology !
NXT radars are Solid-State Radars utilizing Doppler technology
to ensure the safest navigation. The NXT series features Target Analyzer™, Fast
Target Tracking™ and Auto Target Acquire function to offer optimal detection and
sensitivity of hazardous objects. Combined with RezBoost™ technology, the
DRS6A-NXT and DRS4D-NXT have no equal in spotting and tracking targets moving
around your vessel efficiently with a high resolution.
In the Box
Radar Pedestal
& Antenna
15 meter cable
Installation hardware
Documentation
Features
Target Analyzer™ function utilizing Doppler technology spots hazardous
targets instantly!
The DRS4D-NXT and the DRS6A-NXT are the first Radars in the
world to use FURUNO's exclusive Target Analyzer™ function. Targets that are
approaching your vessel automatically change color to help you identify
potentially dangerous targets. Green echoes are targets that stay stationary, or
are moving away from you, while red echoes are hazardous targets that are moving
towards your vessel. Echoes dynamically change colors as targets approach, or
get farther away from your vessel. Target Analyzer™ improves situational
awareness and can increase safety by showing you which targets to look out for.
Target Analyzer™ ON
Target Analyzer™ OFF
Two approaching targets are depicted clearly in RED when Target Analyzer™ is ON.
Hazardous
targets are displayed in bright red
Target
Analyzer™ clearly shows targets close to structures.
Fast Target Tracking™ and Auto Target Acquire function
Approaching
vessel with target vector

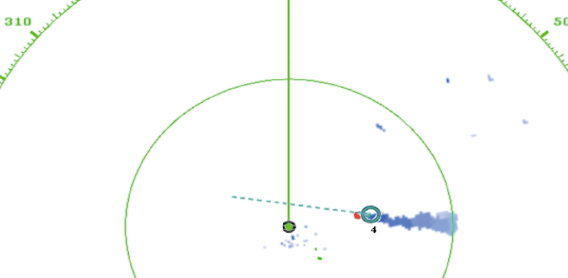

With Fast Target Tracking™ activated, it only takes a few
seconds for a vector to be displayed once the target is selected, manually
or automatically with the Auto Target Acquire function.
When the Auto Target Acquire function
is on, approaching targets within 3NM range from own
ship, which are potentially hazardous, are automatically acquired by
Doppler calculation and will trigger an alarm*.
Together, Up to 100 targets can be acquired
simultaneously, increasing considerably the safety and simplifying
estimation of other vessel’s course and speed.
*TCPA setting required
Bird Mode
Bird
echoesActual scene
DRS6A-NXT and DRS4D-NXT feature a new Bird Mode that helps you identify
birds gathering around schools of fish at the sea surface. Bird mode adjusts
the gain and sea settings automatically for optimal visibility.
RezBoost™ beam sharpening
FURUNO's exclusive RezBoost™ technology has been
incorporated into our Radar units for enhanced resolution and impressive
performance. With RezBoost™ set to MAX, the sharpness offers an incredibly
detailed image with more targets and less clutter.
(the pictures show images captured by the DRS4D-NXT with Standard RezBoost™
and Max RezBoost™ )
RezBoost™ standard (DRS4D-NXT)
RezBoost™ Enhanced, MAX setting (DRS4D-NXT)
Solid-State pulse compression Doppler Radar
No preheating time, low energy consumption (no use of a magnetron)
Revolutionary Target Analyzer™ function
instantly identifies hazardous targets
Fast Target Tracking™ and Auto Target Acquire
function, up to 100 targets
RezBoost™ beam sharpening to increase the
resolution
High bearing resolution*
Can reach 0.7° with DRS6A-NXT, and 2.0° with DRS4D-NXT (when using
RezBoost™)
*the lower the better
Bird Mode to find the best fishing grounds by
tracking birds
Simple installation, no need to open the radome
(DRS4D-NXT only), external PSU is not required
New smart-connector cable for retrofitting
existing DRS cable installations (DRS4D-NXT only)
Specifications
DRS6A-NXT
DRS4D-NXT
ANTENNA
Type
Slotted waveguide array
Radome (24")
Vertical beam width
22°
25°
Horizontal beam width
2.3° (XN10A)
1.9° (XN12A)
1.4° (XN13A)
3.9° (-3dB) Adjustable between 2.0° and 3.9°
(effective with RezBoost control)
Antenna rotation speed
24/36/48 rpm range coupled or 24
rpm fixed
24/36/48 rpm range coupled or 24
rpm fixed
RADAR FUNCTION
Tx frequency
3 channel, auto/manual selectable
Ch #
P0N (MHz)
Q0N (MHz)
1
9380
9400
2
9400
9420
3
9420
9440
Output power
25 W
25 W
Pulselength & PRR
Range Scales (NM)
0.0625-72
0.0625-36
Pulse length (P0N)
0.04-1.2
0.08-1.2
Pulse length (Q0N)
5-48
5-18
PRR (Hz)
700-2000
1100
Tx frequency (MHz)
9380-9440
9380-9440
Minimum range
10 m
20 m
Range resolution
10 m
20 m
Range accuracy
1% of range in use or 10 m, whichever is the greater
1% of range in use or 10 m, whichever is the greater
Scanner Unit (RSB-137-119), Radiator, Installation Materials, Spare
Parts
Radar Sensor (RSB-135-115), Installation Materials, Spare Parts
Option
LAN cable 2/5/10 m, Joint Box
(TL-CAT-012)
Radome Mount (OP03-208),
(OP03-239)LAN cable 2/5/10 m, Joint Box (TL-CAT-012)
Antenna Unit
DRS6A-NXT
XN10A 20 kg 44.1 lb
XN12A 21 kg 46.3 lb
XN13A 23 kg 50.7 lb
DRS4D-NXT
7.3 kg 16.1 lb
Interconnection Diagram
The DRS6A-NXT is only compatible with NavNet TZtouch/TZtouch2,
software version: 5.0.1 or later.
The DRS4D-NXT is only compatible with NavNet TZtouch version 4.2.1 or later
and NavNet TZtouch2 version 3.0.1 or later
For more information about our NavNet products, please click
the link below.
**The price is subject to change at anytime without any notice. We
are not responsible for any typographical errors. Any products can be
cancelled from sale at any time.
** All Products sold here are Brand New unless specified
Otherwise and come with Full Manufacturer's Warranty
WARNING:
This product can expose you to chemicals including Di-n-hexyl Phthalate (DnHP)
which is known to the State of California to cause reproductive harm, and
Vinyl Chloride which is known to the State of California to cause cancer. For
more information go to P65Warnings.ca.gov.
