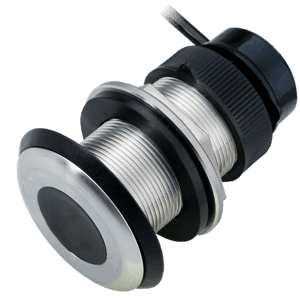

Airmar DT812 NMEA2000 235kHz Stainless Thru Hull Smart 12 deg Tilt Depth & Temperature Transducer
Description
Airmar has taken its proven Tilted Element™ and broadband technologies and
applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile,
retractable, thru-hull sensor that computes accurate depth and temperature data
and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a
frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz
transducers on-board with no interference. The broadband ceramic delivers depth
readings to 183 m (600'), as well as accurate shallow-water readings in as
little as 500 mm (1.6'). Available in fixed 0°, 12°, or 20° tilt, the DT800 is
perfect for power and sailboat applications. It is sold with a choice of rugged
housings— plastic, bronze, or stainless steel—to accommodate any vessel type or
hull material. These low-profile housings do not affect hull performance and
will provide accurate readings at high speeds.
Airmar's Smart™ Sensors have embedded microelectronics—the transducer element
and signal processor are only millimeters apart. The signal from the depth
transducer is processed right inside the sensor itself. All that is needed to
receive depth and temperature data is a single cable into a compatible device or
display. Because the ceramic is tilted inside the housing, the transducer beam
is oriented straight down, resulting in strong bottom echo returns and accurate
depth readings. The retractable housing with a self-closing valve reduces water
flow into the vessel when the transducer is removed for cleaning.
Manufacturer Part Numbers—NMEA 2000®
Furuno Plastic—DT-800PSF——Airmar—44-135-2-03
Furuno Bronze—DT-800MSF——Airmar—44-135-2-04
Garmin 20°—010-11105-00——Airmar—44-133-2-01
Garmin 12°—010-11105-01——Airmar—44-129-3-01
Manufacturer Part Numbers—NMEA 0183
Furuno Plastic—235DT-PSE——Airmar—44-076-1-01
Furuno Bronze—235DHT-MSE——Airmar—44-075-1-02
Manufacturer Part Numbers—12°
Raymarine Plastic—A22112——Airmar—44-129-1-01
Raymarine Bronze—A22147——Airmar—44-129-1-02
Features
- Smart™ Sensor
- Depth & Temperature
- 235 kHz
- 0°, 12°, or 20° Tilt
- Broadband
- NMEA 0183 or 2000®
- Plastic, Bronze, or SS
|
