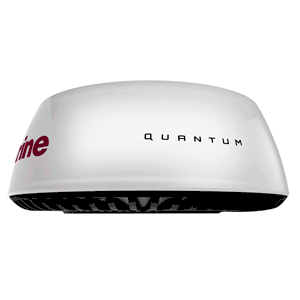

Raymarine Quantum™ Wireless CHIRP Radar

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging

FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

1 Quantum Radar

2 Ordinary magnetron radar

CHIRP Pulse Compression

Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges

1 Day marker target at close range

Small Target Detection

Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

1 Quantum detects the small kayak very close to the waterfront bulkhead

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
Quantum’s small diameter power cable is easy to route through tight spaces
Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail

	GENERAL SPECIFICATIONS
Input Voltage	12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
Networking	Wi-Fi or wired Ethernet (RayNet)
Antenna Type	Patch Array
Power Consumption	Transmit mode 17W; standby mode 7W; sleep mode 2W
Range	Scales From 1/16 to 24 nautical miles
Transmit Frequency	9354 to 9446 MHz
Peak Power Output	20W
Duplexer	Circulator
Pulse Widths (3 dB)	40 ns to 14.7 μs
CHIRP Lengths	400 ns to 20 μs
CHIRP Bandwidth	Up to 32 MHz
IF Bandwidth	26 MHz
Noise	Less than 4 dB
Max. Range Scale	from 1/16 to 24 nautical miles
Beamwidth (nominal)	4.9º horizontal and 20º vertical
Polarisation	Horizontal
Waterproofing	IPX6
Weight	5.6 kg (12.3 lb)

Manual
Installation Guide View (pdf)

What's in the Box:

Quantum radome

10m power cable

4 - M8 bolts with flat and spring washers

Documentation pack
