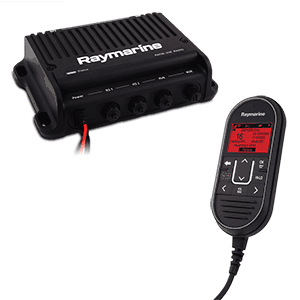

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station
communications to a whole new level of power, performance, and flexibility. The
Ray90 is a black-box design with a transceiver that hides out of sight while the
ergonomic RayMic handset and remote speaker provide full control of the radio
with crystal clear audio.
Key Features
- Black box, multi-station capable VHF radio
- NEW - Wireless handset and active speaker available
- Wired handset and passive speaker included
- Expandable to 2 handsets
- Built-in loudhailer and fog signal generator
- Optional external GPS
- Simple NMEA2000 and NMEA0183 Networking
-
Ray90 is equipped with a powerful 25-watt transmitter and commercial grade
electronics for long life and superior performance. Channel scanning,
dual-watch, tri-watch and weather alert are standard. Class D Digital
Selective Calling radio and integrated GPS makes setting up the advanced
safety and calling features easy. Simply input your vessel’s MMSI number
during setup and you’re ready to go. For GPS operation the optional GA150
passive GPS antenna is required.
Position Tracking
Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC
equipped vessels. Their positions are automatically shared with your Raymarine
MFD. Keep an eye on other boats in your cruising party, monitor vessels of
interest, or manage your local fleet. In Europe the Ray90 supports the ATIS
system on navigable inland waterways.
Loudhailer
Ray90’s built-in loudhailer will make you heard on-deck and across the
harbour. Connect an optional hailing horn and make your presence known with
30-watts of audio output, plus 2-way talkback. When things get foggy, the
loudhailer can also be set to automatically sound required fog signals for
power and sailing vessels underway and at anchor.
Waterproof & Ruggedized
Ray90’s transceiver unit is cast in solid aluminum for shock and vibration
resistance and maximum heat dissipation. RayMic handsets feature super-bright
backlighting for easy viewing in all conditions and oversized keys provide a
sure grip with easy access to commonly used functions.
Expand Your System
The Ray90 system includes 1 RayMic wired handset and a passive speaker kit.
Expand your system with an additional RayMic handset and remote speaker. For
noisy environments choose the optional active remote speaker. No matter how
small or how large your vessel is, the Ray90 all the power and performance you
need for essential communications on the water.
In the Box
- Ray90 VHF DSC Radio (including fitted power and data cable)
- Raymic handset cradle
- Raymic handset
- Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)
- Passive speaker
- Passive speaker mounting gasket
- Passive speaker mounting screws x 4
- VHF radio mounting screws x 4
- Handset cradle mounting screws x 4
- DeviceNet to SeaTalkng adaptor
- Documentation
|
Size (HxWxD) Main Unit
|
Height = 63mm (2.48 in)
Width - 235mm (9.25 in) max
Depth 160mm (6.30 in) max excl rear cables
|
|
|
|
|
Weight Main Unit
|
2.6 Kg (5.7 lbs)
|
|
Water Integrity
|
Complies with IPX6 & IPX7
Complies with EN60945
|
|
Operating Temperature Range
|
-25°C to 55°C
|
|
Storage Temperature Range
|
-25°C to 70°C
|
|
Humidity
|
up to 95%
|
|
Communications Port
|
NMEA 0183 (version 4.01);
NMEA2000 (version 3.101)
|
|
Nominal Supply Voltage
|
12V DC. Reverse
polarity and over voltage protected
|
Rechargable Lithium Ion 2000mAh
battery
|
12V DC. Reverse polarity and
over voltage protected
|
|
Operating Voltage Range
|
9V DC to 16V DC
|
|
9V DC to 16V DC
|
|
Current Consumption
|
Less than 6A at High Power
(13.6V)
Standby: 600 mA
Receive: 2 Amps
|
1 Amp Nominal
|
Less than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 Amps
|
|
Fuse requirements
|
|
|
Inline fuse = 1.25A | Thermal Breaker =
1.25A
|
|
|
Charge Type
|
|
|
Wireless Inductive Charge
|
|
TRANSMITTER
|
Channels
|
All available US,
International and Canadian VHF marine bands
|
|
Frequency Range
|
156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
|
|
Frequency Stability
|
+ / - 1.5 ppm
|
|
Channel Spacing
|
12.5 kHz
|
|
Power Output
|
High Power = 25 Watt
Low Power = 1 Watt
|
|
Spurious emmission
|
Better than -36 dBm at 25W (Less than
0.25 µW)
|
|
Maximum Deviation
|
+/- 5kHz
|
|
Antenna port impedance
|
50 ohms typical
|
RECEIVER
|
Receiver Type
|
Double Conversion Super
Heterodyne
|
|
Channels
|
All available US,
International and Canadian VHF marine bands
|
|
Frequency Range
|
156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
|
|
Wireless Frequency
|
|
2.4GHz
|
2.4GHz
|
|
|
Sensitivity:
|
Better than 1 microvolt EMF
@ 20dB SINAD
|
|
Squelch Sensitivity
|
Less than -2 dBµ EMF
|
|
Hum & Noise
|
Better than -40 dB
|
|
Audio Distortion
|
Less than 10%
|
|
Receiver Sensitivity
|
Distance -119 dBm
(0.25uV)@12 dB SINAD ← Typical
Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
|
|
Adjacent Channel Selectivity
|
More than 70 dB
|
|
Spurious Response Rejection
|
More than 70 dB
|
|
Inter Modulation Rejection
|
More than 70 dB
|
SPEAKER (ACTIVE & PASSIVE)
|
External Passive Speaker Power
|
5W (4Ω) / 2.5W (8Ω)
(Passive)
|
5W (8Ω) (Acitve)
|
|
Hailer Speaker Power Output
|
24W (4Ω) / 12W (8Ω)
|
GPS
|
Number of channels
|
72
|
|
Cold Start
|
29s
|
|
Receiver IC Sensitivity
|
-167 dBm (Tracking) / -148 dBM
(Acquisition)
|
|
GNSS Compatibility
|
GPS
GLONASS
*BeiDou
|
|
SBAS Compatibility
|
WAAS
EGNOS
MSAS
|
|
Special Features
|
Active jamming and interference
reduction
|
|
Operating frequencies
|
GPS L1 C/A
GLONASS L10F
Beidou B1
|
|
Signal Acquisition
|
Automatic
|
|
Almanac Update
|
Automatic
|
|
Geodetic Datum
|
WGS-84 (alternatives available through
Raymarine MFD)
|
|
Refresh Rate
|
20 Hz (20 times per second concurrent
GNSS)
|
|
Positional Accuracy
|
Without SBAS: <2.5 metres 95% of the
time
With SBAS: <2 metres 95% of the time
|
