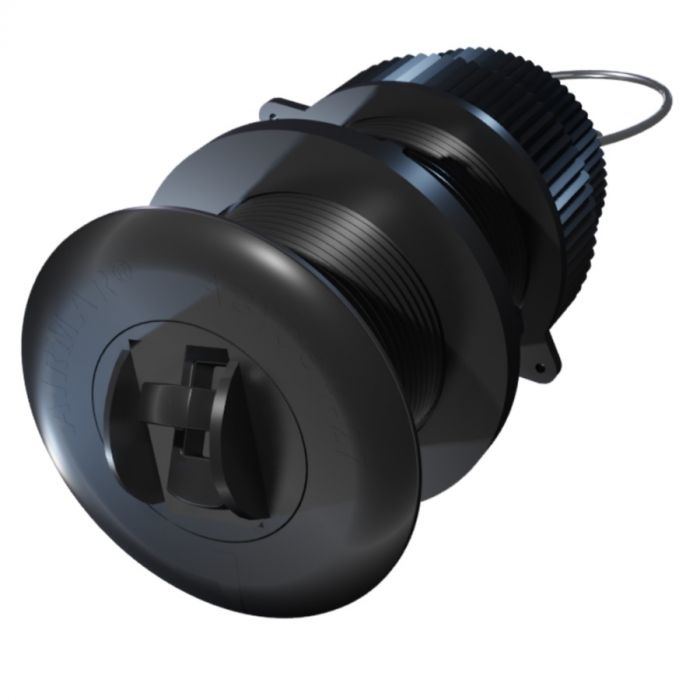

Raymarine ST900 Speed and Temperature Low Profile
Plastic Housing
Model: E70673
- Speed and fast-response
water-temperature
- Best-in-class speed range
from 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH)
- Analog output
- Retractable insert in a
low-profile plastic housing with a water valve
- ST900—Retrofits into Airmar
P120 and B120 housings
Speed performance has been taken to the next level with the introduction of the
ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900
out-performs all other paddlewheel sensors for responsive startup and linearity.
The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3
knots and maintains smooth speed output through 45 knots.
These low-profile housings are nearly flush and minimize drag with only 5 mm
(3/16") extending outside the hull. The housing has a valve assembly that helps
to minimize water ingress in the bilge when the sensor is removed for routine
maintenance of the paddlewheel.
Airmar’s new, next-generation paddlewheel design delivers industry-leading
performance for start-up responsiveness and linearity throughout the speed
range. Gen2 paddlewheel maintains the top speed performance Airmar is known for
and adds start-up speed performance that beats all other available paddlewheels.
The Gen2 paddlewheel is the most sensitive and accurate paddlewheel available
for sailing and power boats.
Specifications
|
Cable-Length |
13.7m |
| Functions |
Speed,
Temperature |
| Hole Size |
51 mm (2") |
| Housing |
Plastic |
| Mounting
Style |
Low Profile
Thru-Hull |
| Protocol
Output |
Analog |
| Retractable
housing |
Yes |
| Retrofits |
AIRMAR
P120, B120 housings |
| Speed Range |
0.3 to 45
knots (.34 to 52 MPH/.55 to 83 KPH) |
| Temperature
Accuracy |
±0.5°C
(±1.8°F) |
| Water
Temperature |
-10° to
40°C (14° to 104°F) |
What's in the Box:
- ST900 with 13.7m Cable
- Plastic Housing and nut
