Furuno FAR1523 25kW Transmitter, 96nm Black Box Radar System, Less Monitor & Antenna & Signal Cable

Features

Target Analyzer� function

The Targe Analyzer� function displays moving targets, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. Spot hazardous targets directly, simply by their color. Target Analyzer� can improve situational awareness, hence increasing safety at sea.
Fast Target Tracking� (TT)

It only takes a few seconds after a target has been selected, for a speed and course vector to be displayed. With accurate tracking information, estimating other vessels course and speed is made easier.
ACE function suppresses false echoes

Quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction lter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).
Customize the display according to your needs

FAR-1523-BB offers impressive customizability and freedom when it comes to display. Choose how you want echoes to be displayed so that you can maximize visibility and efficiency.
Compact easy to use control unit

Individual knobs for gain/rain/sea clutter suppression as well as RotoKey and a touch panel allow efficient, simple operation. An optional trackball unit as well as a regular USB mouse can also be used.
Customizable data display for efficient and simple operation

Whether it be a close up window of approaching targets or target information, you can customize the display freely to show the information you need at hand.
Display Radar overlay on your connected GPS Chart Plotter
AIS connectivity built-in

Connect a required AIS transponder to overlay AIS targets on the radar display. Up to 40 different targets can be tracked simultaneously.
High visibility MU-190 and MU-150HD Marine Display

19" LCD MU-190 and 15" LCD MU-150HD are available as optional supply to fit the needs of your unique vessel. A high brightness display ensures great visibility in the most difficult of conditions.
Scalable Ethernet Network System

The 100 Base-TX Ethernet is utilized to network two radar systems together without the need for extra devices. For convenience, you can control both radars from any of the connected displays.

Specifications

ANTENNA

Peak Output Power	25 kW
Type	1200 mm Open (4') or 1800 mm Open (6')
Frequency	9410 MHz �30 MHz, P0N
Beam Width (Horizontal)	1.9� (XN12A), 1.35� (XN13A)
Beam Width (Vertical)	20�
Range Scales	0.125 - 96 NM
Antenna Rotation Speed	24 rpm (RSB-0070), 48 rpm (RSB-0073)
Weight	XN12A: 25 kg XN13A: 27 kg

DISPLAY

Display Unit	Optional supply, 1024 x 768 (XGA)
Display Mode	Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up
Other Mode / Functions	Target Analyzer�, Fast Target Tracking� (TT), AIS, Echo Trails

ENVIRONMENT

Temperature	Antenna unit: -25�C to +55�C (storage: +70�C or less) Processor unit: -15�C to +55�C
Waterproofing	Antenna unit: IP26 Processor unit: IP20 (IP22: option) Control unit: IP22

POWER SUPPLY

Power Supply / Consumption Current	Processor unit: 24 VDC: 5.0 A max. (24 rpm), 5.6 A max. (48 rpm) Rectifier (RU-1746B-2, optional supply): 100-115/200-230 VAC, 1 phase, 50/60Hz

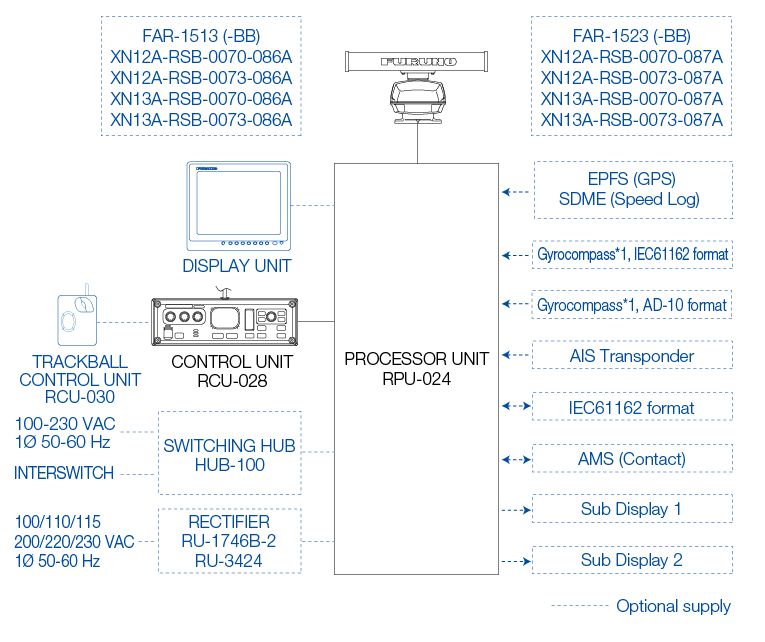

Equipment List

Standard

PROCESSOR UNIT
RPU-024
CONTROL UNIT
RCU-028
ANTENNA GEAR BOX
RSB-0070
RSB-0073
ANTENNA RADIATOR
XN12A
XN13A
STANDARD SPARE PARTS AND INSTALLATION MATERIALS
ANTENNA CABLE (10/15/20/30 M), SPECIFY WHEN ORDERING
