Home > GPS & Chartplotter > JRC GPS Navigator >

JRC GPS Navigator JLR-8600

The new JLR-8600 GPS navigator combined with our trusted 6.5-inch touch display will locate your position with high accuracy utilizing our newly designed antenna, providing you with the comfort of an intuitive operational approach.

Features

Both JLR-8400 and JLR-8600 are reliable and accurate GPS navigators which carry the same JRC DNA with uniform design and intuitive, trusted operation. Combined with our new multi-GNSS sensor you are ensured of accurate positioning without compromise

High reliability
Multi-GNSS sensor
Up to 22 satellite signal trackable
Intuitive and trusted operation
Easy to install
Flexible system configuration
IMO approved
Complete and compact
High accuracy
Remote maintenance posiible

	JLR-8400	JLR-8600
Units	2	3
Route Sharing with LAN	n/a	ECDIS / Radar / Navigation & communication systems
Waypoint	1,000	10,000
Routes	20 ( 50 waypoint / route )	100 ( 512 waypoint / route )
Alarm log	40	100

Multi-GNSS sensor

The newly designed multi-GNSS is capable of receiving data from GPS as well as GLONASS, or BeiDou at the same time, allowing for a highly accurate positioning without beacon and SBAS.

The sensor can increase the accuracy of your position by receiving SBAS correction data.

Combination for multi-GNSS

GPS stand alone
GPS + SBAS
GPS + GLONASS
GPS + BeiDou

Easy installation

Both displays are very compact and can virtually be mounted anywhere using the flush mount system. The base of the sensor is designed for an easy installation, either on a pole or on an extension mast. The base also includes a slot allowing for easy cable management. Connecting everything together allows for a high reliability installation approach with redundancy of sensors, power supply and processor units.

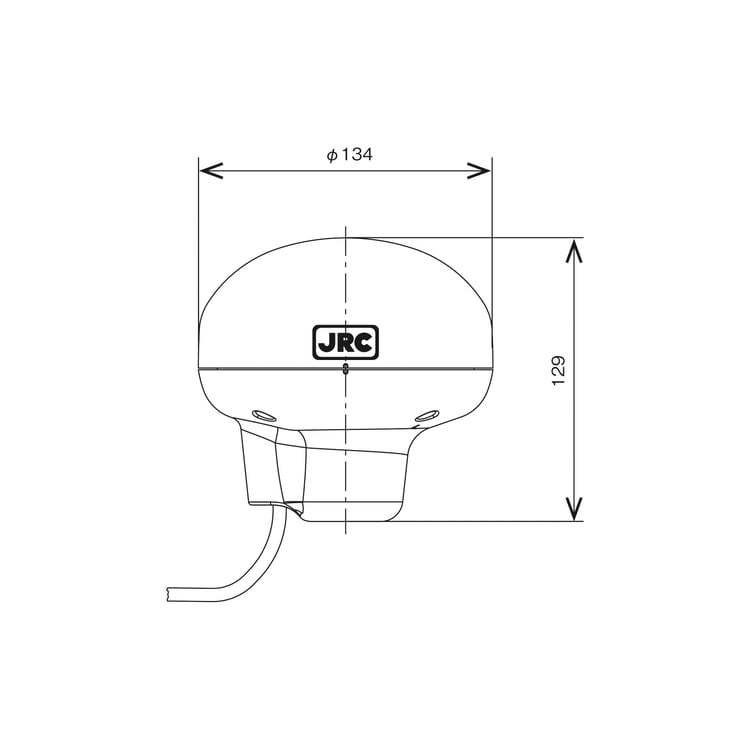

GPS Sensor Unit JLR-4350
Mass: Approx. 1.2 kg

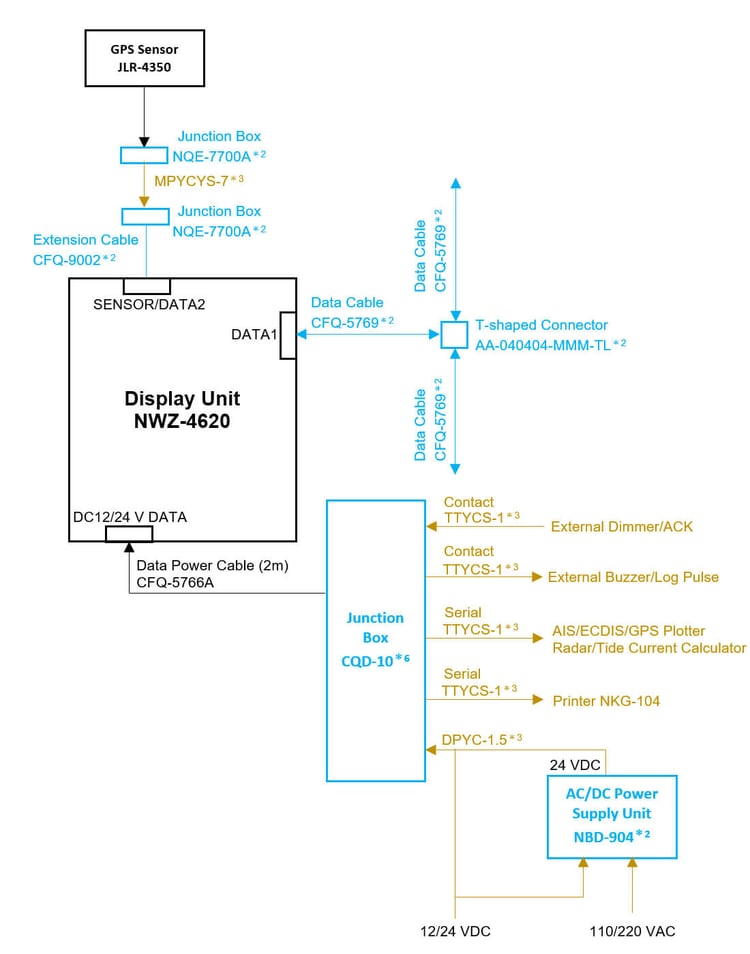

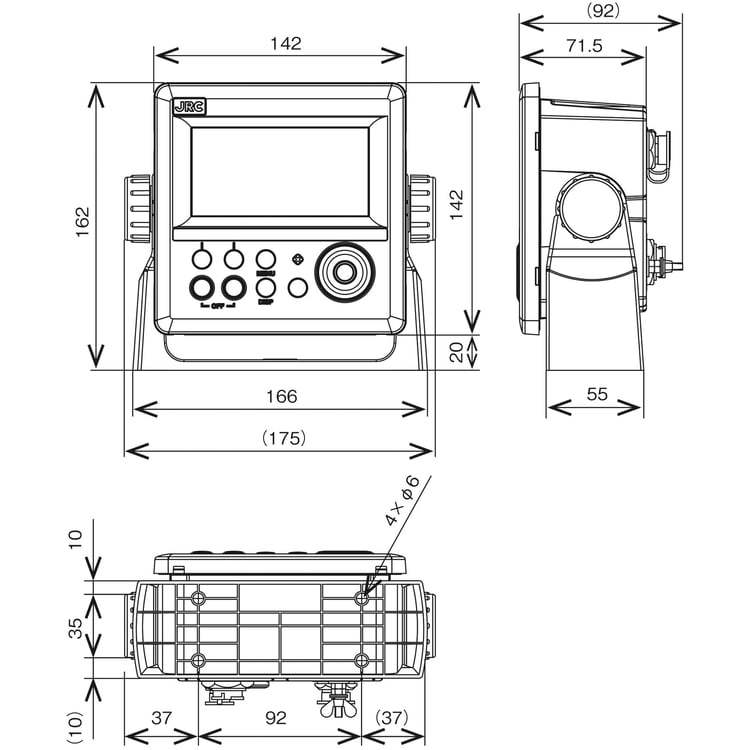

Display Unit NWZ-4620
Mass: Approx. 0.8 kg

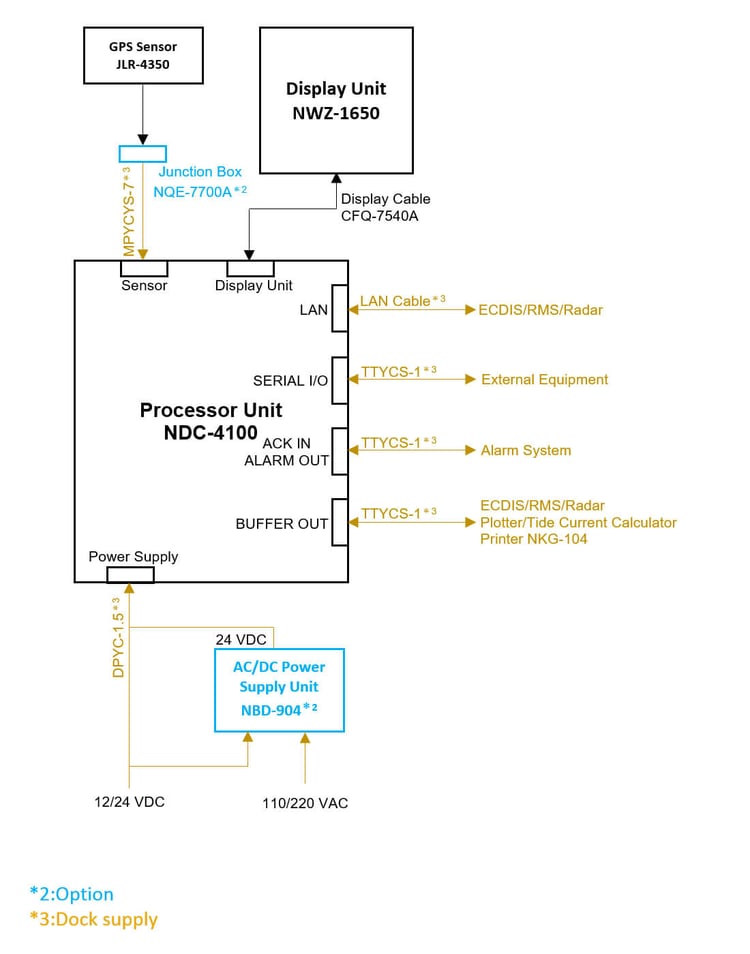

Processor Unit NDC-4100
Mass: Approx. 1.9 kg

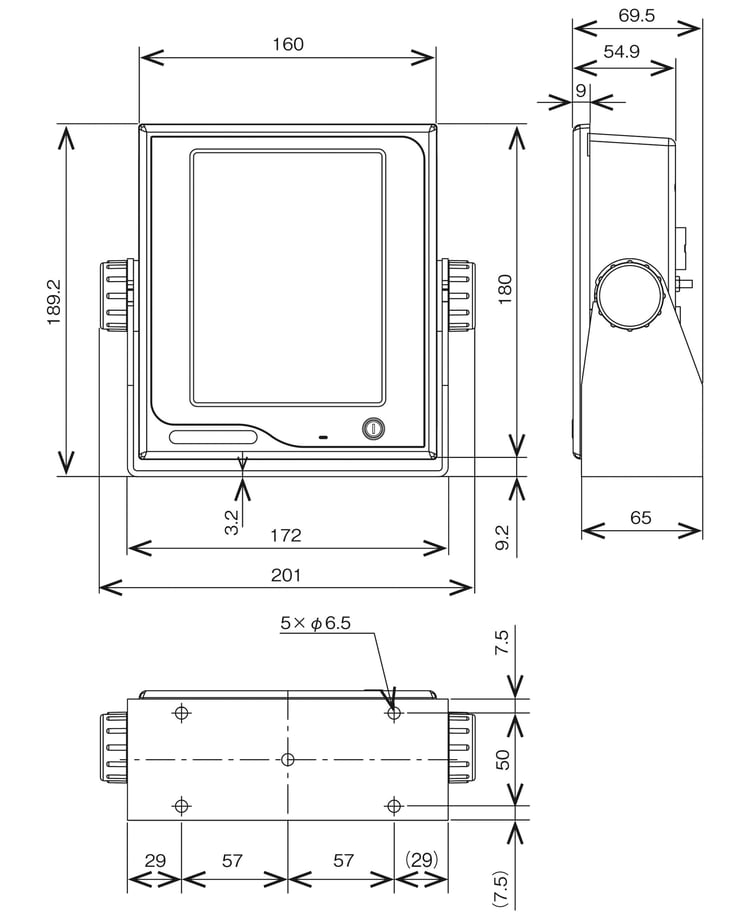

Display Unit NWZ-1650
Mass: Approx. 1.5 kg ( Base Kits included )

Sensor
Equipment Name	GPS navigator
Model	JLR-8600	JLR-8400
Standard	IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 61162-2 Ed.1.0 ( 1998 ) IEC 61162-450 Ed.1.0 ( 2011 ) IEC 62288 Ed.2.0 ( 2014 )	IEC 60945 Ed.4.0 ( 2002 ) IEC 61108-1 Ed.2.0 ( 2003 ) IEC 61162-1 Ed.5.0 ( 2016 ) IEC 62288 Ed.2.0 ( 2014 )
Model	JLR-4350
Positioning Satellite System	GPS, GLONASS, BeiDou, SBAS
Accuracy	Satellite system	Positioning accuracy ( 2DRMS )
	GPS + GLONASS	4 m
	GPS + BeiDou
	GPS + SBAS
	GPS	5 m
	Maximum Number of Tracked Satellites	22 satellites
	Sensitivity	-144 dBm for acquisition
Time to First Fix	Typically 35 seconds ( cold start fix )
	Typically 33 seconds ( warm start fix )
	Typically 4 seconds ( hot start fix )
Position Update	Normally every 1 second
Geodetic Satum	Selection among 48 geodetic datum ( default: WGS-84 )
JLR-8600/8400 specifications
Model	Display Unit: NWZ-1650 Processor Unit: NDC-4100	Display Unit: NWZ-4620
Display	6.5-inch TFT color LCD	4.5-inch monochrome LCD
Display	640x480 dots ( VGA ) Brightness: 800 cd/m²>	128x64 dots
Backlight	17 steps	White or orange
Memory	Waypoints: 10,000 points Event/Mark: 1,000 points Route: 100 routes Track: 2,000 points	Waypoints: 1,000 points Event/MOB: include in waypoints Route: 20 routes Track: 2,000 points
Plot Function Scale	0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 300 NM	0.125, 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100 NM
Plot Interval	1 to 60 min ( 1 sec ) or 0.01 to 99.99 NM ( 0.01 NM ) selectable
Navigation Calculation	Grate circle or rhumb line selectable
Screen Mode	Navigation information screen, plotting screen, analogue screen, highway screen, satellite information screen, waypoint information screen, beacon text screen, navigation aid screen	Navigation screen, PLOT screen, GPS information screen, beacon information screen, CDI screen, distance screen, speed screen, reception information screen, waypoint information screen
Alert	Arrival, anchor, boundary, XTD, no position fix, speed, trip, HDOP, temperature, depth	Arrival, anchor, XTD, no position fix, speed, trip, HDOP
Unit	Distance speed: NM, kn, km, km/h, mi, mi/h
Buffer/Select Switch	Built-in	Option
Dual Power Supply	Available	None
Power Supply Voltage	12/24 VDC: 2.0 A	12/24 VDC: 0.5 A
Power Consumption	25 W ( JLR-4350 )	7 W ( JLR-4350 )
Interface
Ports	IEC 61162-1: ( Input ) 2 ports, ( output ) 5 ports IEC 61162-2: ( Input ) 1 port, ( output ) 1 port Buffer ( IEC 61162-1 ): ( Output ) 8 ports LAN ( IEC 61162-450 ): 2 ports Dry contact: ( Input ) 1 port, ( output ) 4 ports RS-232C: ( Input ) 1 port, ( output ) 1 port	IEC 61162-1: ( Input / output ) 3 ports Dry contact: ( Input ) 1 port, ( output ) 1 port
NMEA 0183 Version	Ver1.5/2.1/2.3/4.0
NMEA 0183 Input Sentence	ACK, ACN, ALC, ALF, ALR, CUR, DBT, DPT, HBT, HDT, MTW, MWV, RTE, THS, VBW, VHW, VWR, VWT, WPL	ACK, ACN, RTE, WPL
NMEA 0183 Output Sentence	AAM, ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, CUR, DBT, DPT, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, MTW, MWV, RMB, RMC, RTE, THS, VBW, VHW, VTG, VWR, VWT, WPL, XTE, ZDA, ZTG	ACK, ACN, ALC, ALF, ALR, APB, BOD, BWC, BWR, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, RMB, RMC, RTE, VTG, WPL, XTE, ZDA, ZTG
Environment
Operating Temperature	GPS Sensor: -25 ℃ to +55 ℃ Display Unit: -15 ℃ to +55 ℃ Processor Unit: -15 ℃ to +55 ℃	GPS Sensor: -25 ℃ to +55 ℃ Display Unit: -15 ℃ to +55 ℃
Storage Temperature	GPS Sensor: -40 ℃ to +70 ℃ Display Unit: -25 ℃ to +70 ℃ Processor Unit: -25 ℃ to +70 ℃	GPS Sensor: -40 ℃ to +70 ℃ Display Unit: -25 ℃ to +70 ℃
Waterproofing	GPS Sensor: IP56 Display Unit: IP56 Processor Unit: IP22	GPS Sensor: IP56 Display Unit: IP55

Name	Model	Q'ty
JLR-8600
GPS Sensor Unit	JLR-4350	x1
Instruction Manual ( Sensor )	7ZPNA4695	x1
Processor Unit	NDC-4100	x1
Display Unit	NWZ-1650	x1
Display Cable	CFQ-7540	x1
Instruction Manual	7ZPNA4699	x1
JLR-8400
GPS Sensor Unit	JLR-4350	x1
Instruction Manual ( Sensor )	7ZPNA4693	x1
Display Unit	NWZ-4620	x1
Data Power Cable	CFQ-5766A	x1
Instruction Manual	7ZPNA4697	x1
