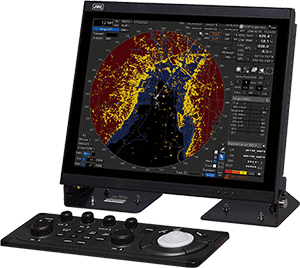

JRC JMR-5410-6X Radar IMO with 6' Open Array & 19" Monitor

IMO-compliant and MED-certified marine radar*1

:Cat.2 certification.

The JMR-5400 series is equipped with a top-of-the-line processor,remarkably improving target detection and drawing performance a like.

Also, in addition to the newly developed and highly sensitive radar antenna, an 8ft S band solid-state radar antenna is also available.

The newest signal processing technology with highly refined image display.

Short-range target detection and clutter removal functionality.

Small oceanic targets that were previously difficult to detect are displayed crisply and clearly. Automatic clutter removal and optimized technology has dramatically improved detection capabilities, and also allows the positions of other ships to be displayed clearly.

Image:Short-range target detection and clutter removal functionality

TT/AIS display functionality.

Equipped with TT functionality by default, allowing users to mark other ships and points of interest with TT symbols and check the course of nearby objects at a glance. The same highlighting functionality is also available for AIS symbols.

Image:TT/AIS display functionality.

Original Menu

Create original menus that include only the items you need, and a favorites list to bring up frequently used items in one location.

Image:Original Menu

Image:Remote Maintenance System (RMS)-compatible.

Remote Maintenance System (RMS)-compatible

The JMR-5400 series is compatible with JRC's proprietary Remote Maintenance System (RMS), which uses JRC's VDR and satellite communications to remotely link to the equipment onboard the vessel to perform remote diagnostics and preventive maintenance. For more information on RMS, please contact JRC's business department.

Radar antennas with exceptionally reliable target detection capabilities.

S band - 8ft 250W solid-state radar antenna

Further miniaturization provides even greater mountability.

Image:Bird Detection Radar

S band - 8ft 250W solid-state radar antenna

New Radar Antenna

A newly tuned system cuts search times to roughly 1/4th of what they were previously. Additionally, thinning of the antenna height means improved drive device reliability.

Image:New Radar Antenna

25kW X-band NKE-2255

Dimensions

Display units

NWZ-214 Weight : 4.6 kg 4.9 kg (AC option)

Image:NWZ-214

NWZ-208 Weight : 16 kg

Image:NWZ-208

Processor

NDC-1678 Weight : 7.1 kg

Image:NDC-1678

Keyboard

NCE-5794 (Standard keyboard) Weight : 2.0 kg

Image:NCE-5794(Standard keyboard)

Scanners

10kW X-band scanner

Image:10kW X-band scanner

4ft 10kW : NKE-2103-4
Swing circle : 1320 mm

10kW X-band scanner [High speed]

Image:10kW X-band scanner[High speed]

6ft 10kW : NKE-2103-6 / HS
Swing circle : 1910 mm

25kW X-band scanner

Image:25kW X-band scanner

7ft 25kW : NKE-2255-7
Swing circle : 2240 mm

25kW X-band scanner

Image:25kW X-band scanner

9ft 25kW : NKE-2255-9
Swing circle : 2810 mm

25kW X-band scanner [High speed]

Image:25kW X-band scanner

6ft 25kW : NKE-2255-6HS
Swing circle : 1880 mm

30kW S-band scanner (2 unit)

Image:30kW S-band scanner (2 unit)

12ft 30kW : NKE-1130
Swing circle : 4000 mm

250W S-band solid-state scanner

Image:250W S-band solid-staite scanner

12ft 250W : NKE-1632
Swing circle : 4000 mm

250W S-band solid-state scanner [High speed]

Image:250W S-band solid-state scanner[High speed]

8ft 250W : NKE-2632 / -H
Swing circle : 2770 mm

Specifications

Model	JMR-5410-4X	JMR-5410-6X	JMR-5410-6XH	JMR-5425-7X	JMR-5425-9X	JMR-5425-6XH	JMR-5430-S	JMR-5472-S	JMR-5482-S	JMR-5482-SH
Display	colour raster scan PPI
Range scale	0.125 / 0.25 / 0.5 / 0.75 / 1.5 / 3 / 6 / 12 / 24 / 48 / 96 NM
Scanners
Model	NKE-2103-4	NKE-2103-6/HS		NKE-2255-7	NKE-2255-9	NKE-2255-6HS	NKE-1130	NKE-1632*1	NKE-2632 / -H*1
Transmitting power	10 kW			25 kW			30 kW	250 W
Transmitting frequency	9410 MHz � 30 MHz			9410 MHz � 30 MHz			3050 MHz � 20 MHz	P0N : 3035 MHz, Q0N : 3065 MHz � 4 MHz or 3060 MHz � 4 MHz
Antenna length	4 ft	6 ft		7 ft	9 ft	6 ft	12 ft	12 ft	8 ft	8 ft
Rotation speed	27 rpm		48 rpm	24 rpm	24 rpm	48 rpm	24 rpm	24 rpm	24 rpm	48 rpm
Horizontal beam width	1.9�	1.2�		1.0�	0.8�	1.2�	1.9�	1.9�	2.7�	2.7�
Vertical beam width	20�			20�	20�	20�	25�	25�	25�	25�
Weight	34 kg	36 kg		52 kg	52 kg	55 kg	180 kg	160 kg	85 kg	90 kg
Pulse width	0.08 �s / 2250 Hz 0.25 �s / 1700 Hz 0.5 �s / 1200 Hz 0.8 �s / 750 Hz 1.0 �s / 650 Hz			0.07 �s / 2250 Hz , 0.2 �s / 2250 Hz 0.3 �s / 1900 Hz , 0.4 �s / 1400 Hz 0.8 �s / 750 Hz,1.0 �s / 650 Hz 1.2 �s / 510 Hz				0.07 �s / (4.6 �s , 8 MHz) / 1860 Hz or 2280 Hz 0.14 �s / (9.1 �s , 8 MHz) / 1860 Hz or 2280 Hz 0.29 �s / (9.1 �s , 8 MHz) / 1860 Hz or 2280 Hz 0.57 �s / (9.1 �s , 8 MHz) / 1280 Hz 1.14 �s / (18.3 �s , 8 MHz) / 640 Hz
Duplexer	circular + diode limiter
Tuning	automatic / manual
Ambient condition	Operation temperature : -25? to +55? ; relative humidity : 93% @ 40?
Processor
Model	NDC-1678
Bearing indication	RM display : north-up / course-up / head-up TM display : north-up / course-up
Presentation mode	RM display with true trail , RM display with relative trail , TM display
EBL	2 (EBL1 / EBL2)(center/independent)000.0� - 359.9�, digital display
VRM	2 (VRM1 / VRM2)0.000 to 96.0 NM , digital display
Trail indication	Short : off / 0.25 / 0.5 / 1 / 3 / 6 / 10 / 15 / 30 / 60-min Middle : off / 1 / 3 / 6 / 10 / 15 / 30 / 60 / 90 / 120-min Long : off / 0.5 / 1 / 2 to 24-hrs (at 1-hr interval from 1 to 24-hrs)
Display
Model	NWZ-214 (19-inch) / NWZ-208 (26-inch)
LCD	1280 x 1024 dot (SXGA)(19-inch) / 1920 x 1200 dot (WUXGA)(26-inch)
PPI Effective diameter	= 250 mm (19-inch) / = 320 mm (26-inch)
Connection cable	5 m (processor-monitor)
Number of TT tracking targets	30 targets max. (expanding to a maximum 100 targets with an optional function added)
TT Tracking Range	Auto / Manual 32 NM max.
Number of AIS targets	180 targets max. (expanding to a maximum 1,000 targets with an optional function added)
TT / AIS vector	True / Relative, variable from 1 to 120 minutes
Keyboard
Model	NCE-5794
Connection cable	5 m (processor-keybord)
Ambient conditions	Operating temperature : -15 to 55? ; Relative humidity : 93% @ 40? (processor , display , keyboard)

Installation cable	CFQ-6912-20 length 20 m(max length 65 m)						CFQ-6912-20 length 20 m 2695110056	2695110056
Power supply(voltage)	DC 21.6 to 36.0 V						DC 21.6 to 36.0 V , AC 100 V to 240 V
Power consumption(max wind) NWZ-214	Max. 350 W			Max. 400 W	Max. 500 W	Max. 450 W	Max. AC : 1700VA / DC : 200 W		Max. AC : 1300 VA / DC : 200 W	Max. AC : 1700 VA / DC : 200 W
Power consumption(max wind) NWZ-208	Max. 400 W			Max. 450 W	Max. 550 W	Max. 500 W	Max. AC : 1700 VA / DC : 250 W		Max. AC : 1300 VA / DC : 250 W	Max. AC : 1700 VA / DC : 250 W
Option
Trackball Operation Unit						NCE-5605
Trackball Operation Unit Installation Cable						7ZCNA4152
Keyboard Operation Unit						NCE-5625
Junction Box						NQE-1143
Sensor LAN Switch Unit						NQA-2443
Rectifier						NBA-5111
Interswitch Unit						NQE-3141-4A(4ch) / NQE-3141-8A(8ch)
Power Control Unit						NQE-3167
Distributor for Remote Monitor Display Connection						Video Distribution Amplifier : VAC-2001HB-A Monitor Extension Kit : CQF-5957
Monitor Stand						CWB-1660 (26-inch) / CWB-1659 (19-inch)
Monitor Cover						CWB-1621 (26-inch) / CWB-1619 (19-inch)
Monitor Hood						CWB-1620 (26-inch) / CWB-1618 (19-inch)
Printer						Printer : 7HPNA4004 , L Type Stopper(Printer Fixture) : QL-58
Operation Unit RS-422 Extension Cable						10 m : 7ZCRD1746, 20 m : 7ZCRD1747, 30 m : 7ZCRD1748, 40 m : 7ZCRD1749, 50 m : 7ZCRD1750 (maximum length)
NSK Unit						NCT-4106A
CMH-2370 Serial LAN Interface Circuit Spare Parts						7ZXNA4020
7HPNA4004 Printer Spare Parts						7ZXNA4011

: NKE-1632 , NKE-2632 scanner antennas : Transmission pulse width(1st) / (Transmission pulse with and frequency shift width (2nd)) / Repetition frequency
