Max Flow |
5 GPM |
18.5 LPM |
|
Max Head |
13 FT |
2.7 M |
|
Power |
.028 HP |
.021 KW |
|
Electrical |
115V 50/60HZ or 230V 50/60HZ |
|
Submersible |
Submersible |
|
|
60HZ |
50HZ |
|
Inlet |
3/8"FPT & 3/4"MPT |
|
Outlet |
1/4"MPT |
|
Wet End |
Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring),
Stainless Steel (Shaft, Cooling Tube), Ceramic (Thrust Washer), Ceramic
Magnet |
|
Uses |
Submersible or Open Air |
|
When submerged, the following is also in contact with the solution |
Epoxy, Buna N, Cord |
LC-2CP-MD
Curve
LC-2CP-MD
Pump Manual
Options:
O-Ring: Buna N, Viton, or Ethylene Propylene
Shaft: Ceramic or 316 Stainless Steel
Impeller: Polypropylene or Delrin
Reference Information
Dimensional
Drawing LC-2CP-MD 115V
Dimensional
Drawing LC-2CP-MD 230V
Dimensional
Drawing LC-2CP-MD 115V DWG (115 KB)
Dimensional
Drawing LC-2CP-MD 230V DWG (115 KB)

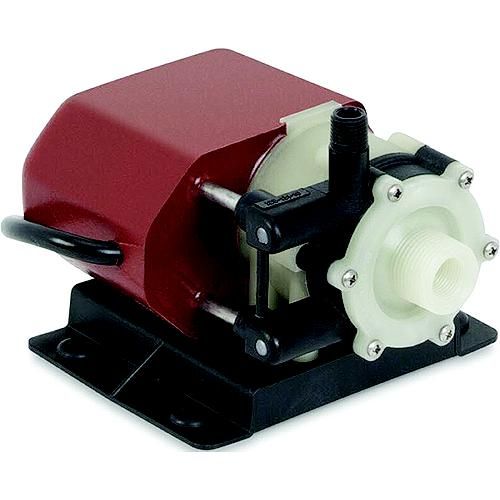

March Pump's industrial LC-2CP-MD is an American submersible seal-less
centrifugal magnetic drive pump. It is capable of generating a maximum flow of 5
gallons per minute at 1 foot, and its maximum head is 13 Feet (or around
5.5PSI). The LC-2CP-MD pump may be used submerged or not submerged. The
standard wet end (the materials that come into contact with the solution) is
composed of Polypropylene, Viton, Stainless Steel, Ceramic, and Ceramic Magnet.
When submerged, Epoxy, Buna N, and the Cord are also in contact with the
solution. The inlet connection is 0.375 inch female pipe thread and 0.75 inch
male pipe thread, and the outlet is 0.25 inch male pipe thread. The standard
motor is a 1 Phase 115V or 230V 0.028 Horsepower motor, which can be run on
either 50 or 60 hertz (there are performance differences between the hertz
options). The maximum internal pressure the pump can tolerate is 25PSI, and the
maximum liquid temperature is 130 Fahrenheit or
54 Celsius. The March LC-2CP-MD centrifugal magnetic drive pump is
capable of handling fresh water, salt water, and mild chemicals. To determine if
the March LC-2CP-MD is suitable for your application, please contact March Pump.
Perfect for Applications Including
The most common application for the LC-2CP-MD Magnetic Drive Pump is for marine
air conditioning and fountains.
Great for Chemicals
Including
The LC-2CP-MD has pumped Fresh
Water and Salt Water. The LC-2CP-MD
may have been modified to handle these chemicals. Please contact March Pump to
review your application before using the LC-2CP-MD for any of the above listed
chemicals.
Warranty
March pumps are guaranteed against
defects in materials or workmanship for one year from the date of manufacture.
Warranty will be extended for up to one year from the date of purchase, provided
that the warranty card is returned to the factory within 10 days of the purchase
date.
In all events, liability is limited to the purchase price and to the replacement
or repair of any pump or parts defective in materials or workmanship. All pumps
for which a warranty claim is made must be returned to the factory with shipping
costs prepaid. This warranty is void if the pump has been subjected to misuse or
negligence. This warranty applies only to pumps used to pump water. For
applications with all other solutions, contact the factory for verification of
warranty terms before the pump is installed.
