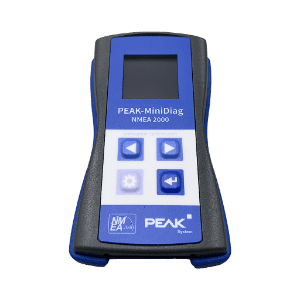

The PEAK-MiniDiag NMEA 2000 is a portable, affordable handheld device for
diagnosing NMEA 2000® networks. Users can validate networks, detect flaws, and
aid device installation with its wide range of measuring functions, including
voltage measurements, CAN termination, and bus load.
Multiple values like the current, the minimum, and maximum measurements are
displayed on a single screen, giving an instant insight in the network's
performance. The color-coded measurement indication ensures effortless reading
and easy interpretation. With this, NMEA 2000® diagnostic is accessible for
everyone, for experienced technicians as well as novices.
The PEAK-MiniDiag NMEA 2000 has an increased ingress protection due to its
casing and membrane keypad. The device can be powered via the NMEA 2000® network
supply or three replaceable batteries.
-
High-speed CAN connection (ISO 11898-2)
-
CAN bus connection via D-Sub, 9-pin
-
NMEA 2000® connection via the supplied adapter cable D-sub, 9-pin to Micro-C
circular connector, 5-pin
-
Preset to the NMEA 2000® default bit rate of 250 kbit/s
-
No influence to the CAN bus due to permanent listen-only mode
-
OLED display with 128 x 128 pixel resolution
-
Power supply via the 12-Volt NMEA 2000® network supply or with exchangeable
batteries (3 x Micro AAA with 1.2V or 1.5V)
-
Maximum current consumption 25mA, LEN 1
-
Operation via membrane keypad with four keys
-
Plastic casing with increased Ingress Protection IP42
-
Dimensions: 122 x 69 x 44 mm (4.8 x 2.71 x 1.73 inch)
-
Operating temperature range from -10 to +50 ℃ (14 to 122 ℉)
User GuideMPEH-001011-User Guide
