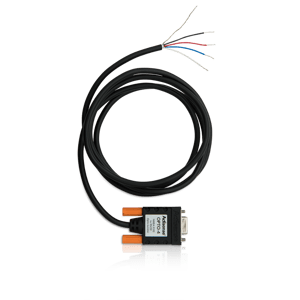

The OPTO-4 provides a safe and low cost way of connecting an NMEA 0183 system to
a PC or any other device with a standard RS232 9-pin port. As a bi-directional
NMEA 0183 to RS232 interface cable, the OPTO-4 utilizes OPTO-isolation to
protect the PC input and spike protection for the PC output, providing
comprehensive isolation of PC hardware when connecting to an NMEA 0183 bus.
If isolation in both directions is required, the Actisense USG-2 offers
bidirectional isolation in a USB to RS422 (NMEA 0183) form.
The Actisense design integrates an over-molded case for excellent water
resistance and a small footprint for installation into tight spaces.
The OPTO-4 takes power from the host RS232 signals including TX and the
handshaking lines RTS and DTR, making the OPTO-4 suitable for most PC serial
ports.
In systems that cannot provide power on the handshaking lines, e.g. serial
devices with only Rx and Tx lines, a DC power supply can be used.
• Converts NMEA 0183 device to work with a PC’s 9-pin serial port
• NMEA 0183 & RS232 compliant
• Full duplex (two-way) communication
• All baud rates up to 115200 Baud
• Over-molded case with a narrow profile for installing in small spaces
• Transient protection on the PC output line
• Opto-isolation providing 2000 volt protection on the PC input line
• Reverse voltage protection on the PC input line
• Current limited to protect against cable faults
• Port-powered; takes power from the PC port
• 4.9’ cable length
• Fully shielded for superior noise rejection
Brand: Actisense
Cable-Length: 1.5
m (4.9')
Comm Method: NMEA
0183/RS232
Connector: Bare
Wire, DB9
Country of Origin: China
Exterior Color: Black
