60/100 W*

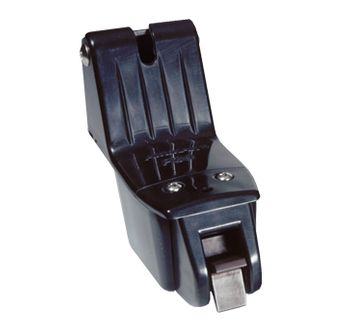

The P39 is our mid-size, transom-mount, TRIDUCER® Multisensor,
combining depth, speed, and temperature functions in a single housing. Its
hydrodynamic shape features a rounded nose which reduces the turbulence under
the transducer’s acoustic face for accurate high-speed depth readings.
Airmar's Smart™ Sensors have embedded
microelectronics—the transducer element and signal processor are only
millimeters apart. The signal from the depth transducer is processed right
inside the sensor itself. All that is needed to receive depth, speed, and
temperature data is a single cable into a compatible network or display.
Available as an analog sensor or a digital Smart Sensor that can output in NMEA
0183 or NMEA 2000® protocol.
-
Depth, speed, and fast-response water-temperature sensing
-
* 60 W of power for NMEA 0183, and 100 W for NMEA 2000 protocol
-
235 kHz frequency prevents mutual interference with other echo sounders on the
vessel
-
Recessed water-flow channel protects paddlewheel
-
Plastic housing with release bracket protects sensor from frontal impact
-
Analog version available
-
NMEA 2000 certified or NMEA 0183 cable
Brand: Airmar
Technology
Acoustic Window: Layered
plastic urethane (LPU)
Cable-Length: 6
m (20')
Comm Method: NMEA
2000®
Common Use: Leisure/Yachting,
Fishing
Conventional Beam: 11°
Country of Origin: USA
Display Connector: N2
Micro
Frequency Band: 235
kHz
Functions: Depth,
Speed, Temperature
Housing: Urethane
Material: Plastic
Max Depth: Low
frequency- 206 m (700'), High frequency- 180 m (600')
Max Vessel LOA: Up
to 7 m (22')
Mounting Style: Transom
Power Rating: 60
W / NMEA 0183 & 100 W / NMEA 2000
Single or Dual Frequency: Conventional
Single Frequency
Tilted Element: No
Weight: 0.5
kg (1.1 lb.)
