600 W

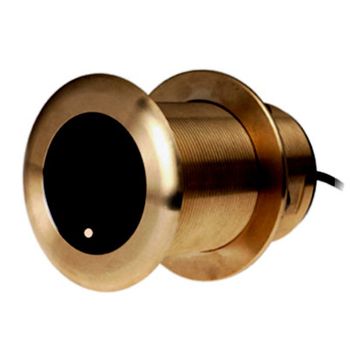

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to
smaller boats such as center consoles. The high-frequency band of the B75H,
operating between 130 and 210 kHz, has a narrow beamwidth—excellent for
pinpointing fish holding tight to wrecks, reefs, and other structures. It also
shows amazing target separation on baitfish and schooling gamefish. This
transducer delivers up to 80 kHz of total bandwidth in just one installation for
clear bottom detail and fish target resolution.
Tilted Element™ transducers have the
ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the
transducer is installed almost flush to the hull, the tilt of the element
corrects for the hull deadrise, orienting the beam directly down. This ensures
maximum echo returns to the transducer for more accurate depth readings.
The B75H is available in three Tilted Element models:
- Fixed 20°
tilted version for 16 to 24° hull deadrise angles
Fixed 12° tilted version for 6 to 15° hull deadrise angles
Fixed 0° tilted version for 0 to 7° hull deadrise angles
-
Depth and fast-response water-temperature sensing
-
600 W of power with a maximum depth of 214 m (700')
-
High frequency: 130 to 210 kHz
-
High frequency delivers great shallow-water performance, bottom detail, and
clear fish-target returns
-
Low-profile, thru-hull housing provides good display resolution at speed when
installed properly
-
Recommended for stepped, planing, or displacement hull
-
Bronze housing for use in a fiberglass or wood hull
-
Also available in a stainless steel housing (SS75H) for use with all hull
materials
-
Patented Xducer ID® technology
Brand: Airmar
Technology
Acoustic Window: Urethane
Cable-Length: 10
m (33')
Common Use: Fishing
Country of Origin: USA
Display Connector: 0
Frequency Band: High
Functions: Depth,
Temperature
High Frequency: 130-210
kHz
High Frequency Beamwidth: 15°-9°
Hole Size: 70
mm (2-13/16")
Hull Material: Fiberglass
or wood
Material: Bronze
Max Deadrise: Up
to 24°
Max Deadrise Angle: 24°
Max Depth: 214
m (700')
Max Vessel LOA: Up
to 8 m (26')
Mix and Match Series: 12-Pin
Chirp
Mounting Style: Tilted
Element Thru-Hull
Power Rating: 600
W
Retractable housing: No
Sensor Connector: MMC
Single or Dual Frequency: CHIRP-Ready
Single-Band
Tilt Angle: 0
12 or 20 deg available
Tilted Element: Yes
Usable Shaft Length: 95
mm (3.75")
Weight: 1.4
kg (3 lb.)
