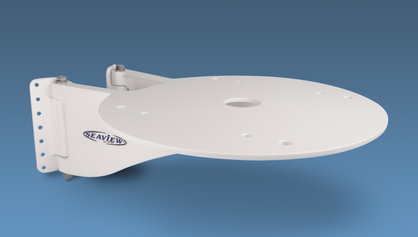

Seaview Mast Mount For KVH M2, M3, M5, 37Stv, 45Stv, Sea King, Sea Tel, SM-18-A
Seaview Mast Mounts are designed to have the radar or satdome as close as
possible to the mast. Ultra heavy duty mounting feet and rivets are used to
secure the Mast Mount to the mast.
Adjustable
Designed with fore and aft adjustable rails so that you can have the radar as
close as possible to the mast.
Incredible Strength
The solid underbody construction not only greatly improves strength but also
hides radar cables.
On certain models.
Accessories
Pre-drilled underbody allows for flood lights or horns to be mounted. On
certain models.
MAST MOUNT DIMENSIONS
|
|
A
|
B
|
C
|
D
|
E
|
|
|
inch / mm
|
inch / mm
|
inch / mm
|
inch / mm
|
inch / mm
|
|
SM14A
|
8.23 / 209
|
15.9 / 403.1
|
4.11 / 104.4
|
7.44 / 189
|
≤ 2.63 / 66.68
|
|
SM15A
|
12 / 304.8
|
16.25 / 412.75
|
6 / 152.4
|
6.50 / 165.1
|
≤ 2.63 / 66.68
|
|
SM18A
|
18.5 / 469.9
|
22.75 / 577.85
|
6 / 152.4
|
6.50 / 165.1
|
≤ 3.63 / 92.08
|
|
SM18U
|
12 / 304.80
|
15.65 / 397.51
|
3.44 / 87.4
|
7.44 / 189
|
≤ 2.63 / 66.68
|
|
SM18R
|
11.28 / 286.5
|
18.01 / 457.5
|
3.44 / 87.4
|
7.44 / 189
|
≤ 2.63 / 66.68
|
|
SM24A
|
18.50 / 470
|
25 / 635
|
6 / 152.4
|
6.50 / 165.1
|
≤ 3.63 / 92.08
|
|
SM24U
|
11.75 / 298.45
|
20 / 508
|
6 / 152.4
|
6.50 / 165.1
|
≤ 3.63 / 92.08
|
|
SM24R
|
11.75 / 298.45
|
20 / 508
|
6 / 152.4
|
6.50 / 165.1
|
≤ 3.63 / 92.08
|
|
