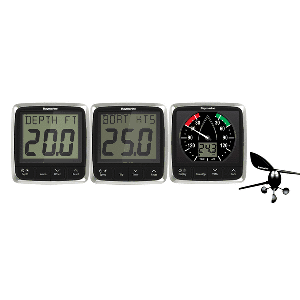

i50/i60 Wind, Speed, Depth System Pack with Transducers
Includes:
- E70058 - i50 Speed Instrument
- E70673 - ST900/P120 S/T Thru Hull - 13.7m Cable
- E70059 - i50 Depth Instrument
- M78713-PZ - P319 LP Thru Hull Depth Transducer
- E70061 - i60 Analogue Wind Instrument
- E22078 - Short Arm Wind Transducer
i60 SeaTalkng Instruments
The i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.
For the ultimate in flexibility, the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.
The ultra-sleek design of the i60 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.
i60 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.
i60 Wind Instrument with Windvane Transducer
Full-featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting, and high-contrast text and graphics.
- Short arm vane supplied with 30m (97.5') cable
- Compatible with Raymarine's masthead transducer (recommended for sailboats)
- Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack
- Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed
- Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument
i60 Features:
- Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems
- Large, crisp LCDs with high contrast for excellent visibility
- Red backlighting for outstanding night-time visibility
- SeaTalkng and SeaTalk-1 Networking for maximum flexibility
- Fully compatible with i70, p70 and p70R Color Instruments and Autopilots
- 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
i50 SeaTalkng Instruments
The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance, and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCDs, and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD, and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match our instruments and multifunction displays.
For the ultimate in flexibility, the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed, and wind transducers directly to the respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.
The ultra-sleek design of the i50 line is designed to complement our full line of a-Series, c-Series, and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.
i50 Instruments are designed to operate from 12V DC power and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry-leading 2-year warranty, upgradeable to 3 years at no charge by registering online within 90 days of purchase.
i50 Speed Instrument
The i50 Speed Instrument offers easy-to-read displays of boat speed through water, GPS speed over ground (SOG), velocity made good (VMG), average speed, and max speed, distance log, trip log, and water temperature. i50 Speed also includes a count-up timer and 2 race-start timers.
- Red backlighting for outstanding night-time visibility.
- SeaTalkng and SeaTalk-1 connectivity for maximum flexibility
- Connect additional i50 speed displays
- Built-in speed transducer connection
i50 Depth Instrument
The i50 Depth Instrument offers accurate and reliable displays of depth, max depth, and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarm.
- Red backlighting for outstanding night-time visibility.
- SeaTalkng and SeaTalk-1 connectivity for maximum flexibility
- Connect additional i50 depth displays
- Built-in depth transducer connection
i50 Features:
- Ultra-modern design complements Raymarine's latest a-Series, c-Series, and e-Series Multifunction display and instrument systems.
- Large, crisp LCDs with high contrast for excellent visibility.
- Red backlighting for outstanding night-time visibility.
- SeaTalkng and SeaTalk-1 Networking for maximum flexibility.
- Fully compatible with i70, p70, and p70R Color Instruments and Autopilots.
- 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
