UC69-I - Balanced: the number of turns lock-to-lock is equal
port to starboard or vice-versa
UC116-I; UC168-I; UC215-I -
All balanced cylinders: the number of turns lock-to-lock is equal port to
starboard and vice-versa
|
SPECIFICATIONS
|
UC69-I - 39782E
|
UC116-I -39431Y Alluminium
|
UC168-I - 39432A Alluminium
|
UC215-I - 39433C Alluminium
|
|
Volume
|
69 cc - 4.2
cu.in
|
116 cc - 7
cu.in
|
168 cc -
10.25 cu.in
|
215 cc -
13.12 cu.in
|
|
Torque
|
32 kgm -
2783 lbs.in
|
58 kgm -
5043 lbs.in
|
87 kgm -
7565 lbs.in
|
111 kgm -
9652 lbs.in
|
|
Output
force
|
168 kg -
371 lbs
|
464 kg -
1023 lbs
|
673 kg -
1483 lbs
|
673 kg -
1483 lbs
|
|
Inside
diameter
|
25 mm -
0.98”
|
32 mm -
1.25”
|
40 mm -
1.57”
|
40 mm -
1.57”
|
|
Stroke
|
150 mm -
5.9”
|
178 mm - 7”
|
178 mm - 7”
|
228 mm - 9”
|
|
3/8”
(9,5 mm)
Fittings
|
For high
pressure flex hose
|
For high
pressure flex hose
|
For high
pressure flex hose
|
For high
pressure flex hose
|

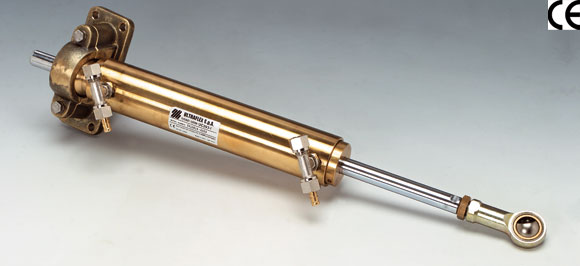

UC293-I; UC378-I - Balanced: the number of turns
lock-to-lock is equal port to starboard or vice-versa.
|
SPECIFICATIONS
|
UC293-I - 40246L Brass
|
UC378-I -40810P Brass
|
|
Volume
|
293 cc -
17.8 cu.in
|
376 cc -
22.94 cu.in
|
|
Torque
|
146,5 kgm -
12816lbs.in
|
187,6 kgm -
16347 lbs.in
|
|
Output
force
|
1155 kg -
2545 lbs
|
1155 kg -
2545 lbs
|
|
Inside
diameter
|
50 mm -
1.97”
|
50 mm -
1.97”
|
|
Stroke
|
178 mm - 7”
|
228 mm - 9"
|
|
Fittings
|
3/8” (9,5
mm) for high pressure flex hose
|
for (12 mm)
copper tube (flexible connection hoses included) or TUR7 high pressure
flex hose
|
UC339-I; UC442-I - Balanced: the number of turns
lock-to-lock is equal port to starboard or vice-versa
UC530-I - Balanced: the number of turns lock-to-lock is
equal port to starboard or vice-versa
|
SPECIFICATIONS
|
UC339-I - 42562H
|
UC442-I -42563K
|
UC530-I - 42564M
|
|
Volume
|
339 cc -
20.7 cu.in
|
442 cc -
26.9 cu.in
|
530 cc -
32.3 cu.in
|
|
Torque
|
172 kgm -
14957.7 lbs.in
|
223 kgm -
19335.6 lbs.in
|
270 kgm -
23443.4 lbs.in
|
|
Output
force
|
1051 kg -
2316.6 lbs
|
1051 kg -
2316.6 lbs
|
1513 kg -
3335.9 lbs
|
|
Inside
diameter
|
50 mm -
1.97”
|
50 mm -
1.97”
|
60 mm -
2.36”
|
|
Stroke
|
230 mm - 9”
|
300 mm -
12”
|
250 mm -
10”
|
|
Fittings
|
For 12 mm
copper tube or TUR7 high pressure flex hose
|
For 12 mm
copper tube or TUR7 high pressure flex hose
|
For 12 mm
copper tube or TUR7 high pressure flex hose
|
