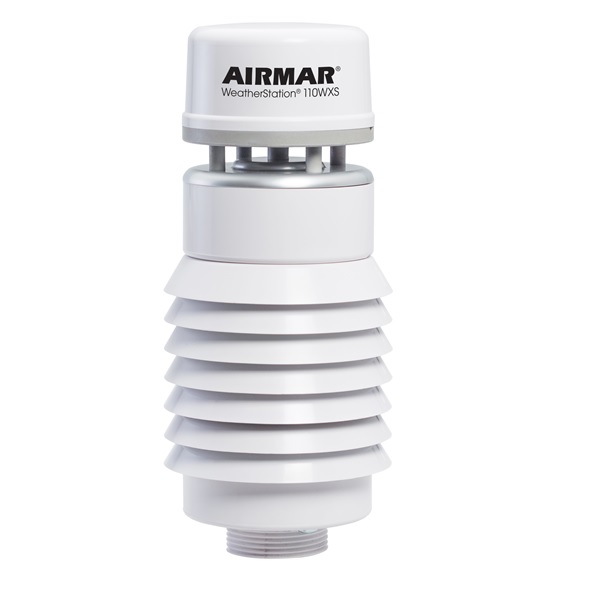

The model 110WXS is Airmar’s entry-level solution for land-based, stationary,
weather-monitoring applications. A complete multisensor WeatherStation, the
110WXS features a solar-radiation shield for increased accuracy and stability of
temperature and relative humidity readings. Ultrasonic measurement of wind speed
and angle is virtually maintenance-free with no moving parts to wear out.
Barometric pressure as well as calculated wind chill and heat index round out
the critical parameters being measured. The durable, rugged housing is designed
to be an integral component of a land-based station.
Brand: Airmar
Technology
Air Temp Accuracy: ±0.3°C
at 20°C
Air Temp Range: -40
to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Barometric Pressure Accuracy: ±0.5
hPa at 25°C (or better)
Barometric Pressure Range: 300
to 1100 hPa
Barometric Pressure Resolution: 0.1
hPa
Certs And Standards: CE,
IPX4, RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022,
EN55024, EN14982
Comm Method: NMEA
0183
Country of Origin: USA
Display Connector: Cable
Required
Exterior Color: White
Exterior Color: White
Note: Cables
sold separately
Optional RH Accuracy: ±3%
RH at 0 to 90% RH at 20°C
Optional RH Range: 0
to 100% RH
Optional RH Resolution: 0.1%
RH
Recommend Use: Land
Based, Stationary, Deployable Installations
RoHS Compliant: Yes
Sensor Connector: 10WS
True Wind Speed and Direction: Yes
(Manual Alignment to North)
Waterproof Rating: IPX4
Weight: 300
g (0.7 lb.)
Wind Direction Accuracy: ±3°
at 10 m/s
Wind Direction Range: 0°
to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5%
at 10 m/s at 4 angles
Wind Speed Calculations: User
configurable damping
Wind Speed Range: 0
to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1
m/s
Humidity: Included
Refurbished: No
Serial Data Output Protocol
NMEA 0183 Sentence Structure – Comma Delimited ASCII Format $GPDTM GPS Datum
Reference $GPGGA GPS Fix Data $GPGLL Geographic Position—Latitude and Longitude
$GPGSA GNSS DOP and Active Satellite $GPGSV Satellites in View $GPRMC
Recommended Minimum GNSS $GPVTG COG and SOG $GPZDA Time and Date $HCHDG Heading,
Deviation, and Variation $HCHDT True Heading $HCTHS True Heading and Status $TIROT
Rate of Turn $WIMDA Meteorological Composite $WIMWD Wind Direction and Speed $WIMWV
Wind Speed and Angle $WIMWR Relative Wind Direction and Speed $WIMWT Theoretical
Wind Direction and Speed $YXXDR Transducer Measurements
CAN Data Output Protocol
NMEA 2000® Output
Message Structure
59392
ISO Acknowledgement
060928
ISO Address Claim
126208
Acknowledge Group Function
126464
PGN List
126992
System Time
126996
Product Information
126998
Configuration Information
127250
Vessel Heading
127251
Rate of Turn
127257
Attitude
127258
Magnetic Variation
129025
Position and Rapid Update
129026
COG and SOG, Rapid Update
129029
GNSS Position Data
129033
Time and Date
129044
Datum 129538
GNSS Control Status 129539
GNSS DOPs 129540
GNSS Sats in View 130306 Wind Data 130310 Environmental Parameters 130311
Environmental Parameters 130312 Temperature 130313 Humidity 130314 Actual
Pressure 130323 Meteorological Station Data
