VETUS Bow Thruster 165 Lbf (75 Kgf), Tube Diameter 7 9/32", Ignition Protected, 4.4Kw, 6HP, BOW7512Di
No Tunnel, Control, Cable included

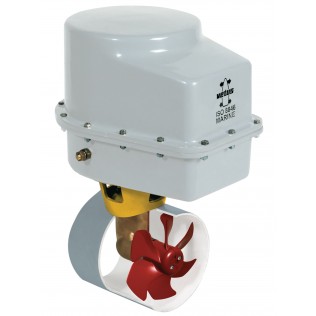

VETUS bow thruster 75 kgf, ignition protected
VETUS ignition protected bow thruster with 75 kgf thrust force, suitable for
boats from 10,5 to 15 metres in length. 12 Volt version.
Installing an electric bow or stern thruster in a petrol (gasoline) engined
boat can be very dangerous, due to the possibility of the electric motor
igniting fuel vapour. In order to eliminate the risk, this special housing will
shield the bow or stern thruster from potentially explosive vapour.
The housing enables the thruster to comply with the ISO 8846 Marine ?ignition
protection? standard. In addition to the standard thruster, the set consists of
a watertight (IP65) housing for the electric motor and relays, together with all
required seals, electrical connectors and fastening components.
An automatic fuse for the control loom is also supplied. This can be reset
externally without opening the housing. For both 12 and 24 volt supply. They can
also be used as stern thrusters, in combination with the appropriate kit.
Because the motor housing is watertight, these sets are also ideal for use where
the bow or stern thruster is installed in a wet or humid space.
12V Model spec's
| Voltage (V) |
12 V |
| Ignition protection |
Yes |
| Power (hp) |
6 |
| Motor, reversible D.C. |
Yes |
| Internal tunnel diameter (inches) |
7 9/32 |
| Weight (lbs) |
57 |
| Current consumption (A) |
500 |
| Continuous operating time (min) |
2 |
| Max. operating time (minutes) |
2 |
| Main fuse "slow blow" (A) |
355 |
| Batteries 12 V, min./max. Ah |
1x120 / 1x225 |
| Battery cables, length pos./neg. cables (ft/AWG) |
No |
| Battery main switch: model BATSW / type BPMAIN |
250 / 12 |
| Size A in inches, see drawing |
9 3/8 |
| Size B in inches, see drawing |
18 7/64 |
| Size C in inches, see drawing |
3 1/32 |
| Size D min./max. in inches, see drawing |
14 9/16 / 29 9/64 |
| Size E in inches, see drawing |
11 21/32 |
| Size F, diameter in inches, see drawing |
9 29/64 |
| Size G min. in inches, see drawing |
7 9/32 |
| Size H, diameter in inches, see drawing |
7 9/32 |
24V model spe'cs
| Voltage (V) |
24 V |
| Ignition protection |
Yes |
| Power (hp) |
6 |
| Motor, reversible D.C. |
Yes |
| Internal tunnel diameter (inches) |
7 9/32 |
| Weight (lbs) |
57 |
| Current consumption (A) |
500 |
| Continuous operating time (min) |
2 |
| Max. operating time (minutes) |
2 |
| Main fuse "slow blow" (A) |
355 |
| Batteries 12 V, min./max. Ah |
1x120 / 1x225 |
| Battery cables, length pos./neg. cables (ft/AWG) |
No |
| Battery main switch: model BATSW / type BPMAIN |
250 / 12 |
| Size A in inches, see drawing |
9 3/8 |
| Size B in inches, see drawing |
18 7/64 |
| Size C in inches, see drawing |
3 1/32 |
| Size D min./max. in inches, see drawing |
14 9/16 / 29 9/64 |
| Size E in inches, see drawing |
11 21/32 |
| Size F, diameter in inches, see drawing |
9 29/64 |
| Size G min. in inches, see drawing |
7 9/32 |
| Size H, diameter in inches, see drawing |
7 9/32 |
Installation Manual
|
