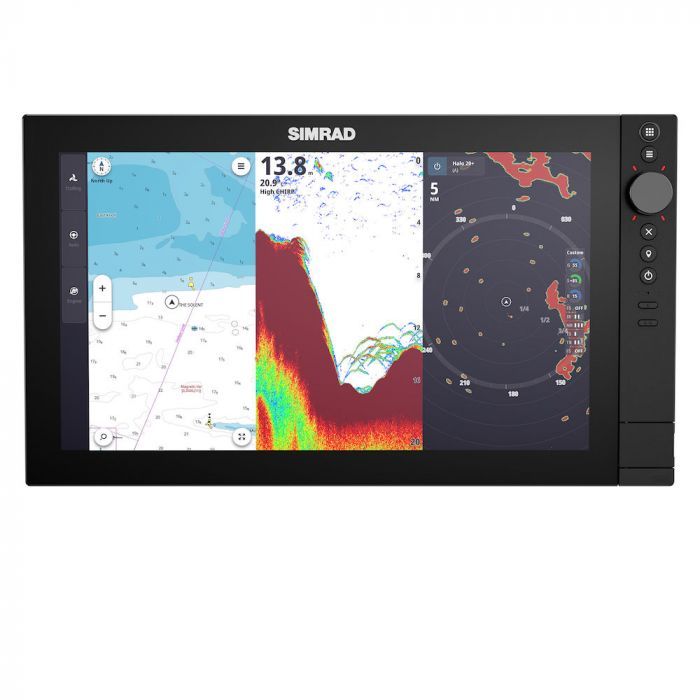

Simrad NSS 4-16 16" Combo with U.S. C-MAP, 000-16018-001

Simrad NSS4-16 16in MFD With Sonar US C-MAP Discover X

Model: 000-16018-001

Trio of hybrid controls: touch, rotary, and keypad
Premium glass-to-edge design
Lightning fast Qualcomm� 8 core processor
Redesigned operating system
Built-in dual channel 1kW CHIRP echosounder
Support for Active Imaging� & Active Imaging� HD
Support for C-MAP� X-gen charts and others
Simrad� RECON�, Rhodan� and Motorguide� Trolling Motor Compatible
Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more.
Support for Mercury�, CZone�, SiriusXM�, and more.

NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.

Experience the power of a lightning fast Qualcomm� 8-core processor, designed to keep up with every move on the water.

Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing � and not on the screen.

NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Active Imaging� HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structure in stunning detail making it easier to pinpoint the best angling spots.

Seamless integration with the full suite of Simrad� electronics puts you in total control. Connect effortlessly with our most powerful HALO� radars, the RECON� trolling motor, the incredible Simrad� app, and more.

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.

Specifications

Autopilot
Manouevres / Turn Patterns	U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
Steering Modes	Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
Cartography
Chart Format	C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
Charts Supported	C-MAP Discover� X, C-MAP Reveal� X. Third party charts CMOR, StikeLines (check with provider for available content)
Connectivity
Bluetooth	Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
Ethernet	1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
NMEA 0183	No
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
WiFi	Wi-Fi 5 (IEEE 802.11ax)
Display
Backlight Color	White
Resolution	1920 x 1080
Screen Brightness	Greater than 1200 nits
Size and Type	16 inch SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Viewing Angles	80� top/bottom, 80� left/right
Electrical
Power Consumption, max.	43.5 W
Recommended Fuse Rating	5 A
Supply Voltage	12/24 V DC (10 - 31.2 V DC min - max)
Humidity	IEC 60945 Damp heat 66�C (150�F) at 95% relative (18 hr)
Environment
Operating Temperature Range	-15�C to 55�C (5�F to 131�F)
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	-20�C to 60�C (-4�F to 140�F)
Waterproof rating	IPX6 and IPX7
GPS
Correction	10 Hz high speed update (internal)
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Update rate	10Hz
MFD
AIS	Receive AIS data over NMEA 2000
Autopilot	NAC-1, NAC-2, NAC3, NAC-D compatible
Cartography included	Discover X chart card of North America
Cartography supported	C-MAP Discover� X, C-MAP Reveal� X. Third party charts CMOR, StikeLines (check with provider for available content)
Digital Switching	Czone / DDS
External Storage	2x (microSD�, SDHC�), 1 x USB port
GPS	10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)
Radar (inc. compatibility)	Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
Weather	Sirius XM via WM4 module (USA only)
Waypoints, Routes, Tracks	10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
Compass Safe Distance - Metric, imperial	65 cm (2.1 ft)
Physical
Dimensions (W x H x D)	Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67 in x 9.51 in x 3.49 in) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85 in x 10.49 in x 3.49 in)
Mounting Type	Bracket mount (bracket optional). Rear mount (brackets supplied)
Weight	3.8 kg (8.38 lb)
