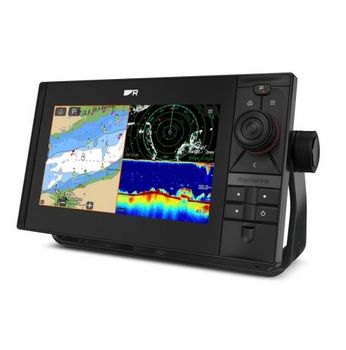

Raymarine Axiom2 Pro 9S RVM Chartplotter/Fishfinder with RealVision and 1KW CHIRP Sonar & No Transducer No Chart
Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters
with RealVision MAX and 1kW CHIRP sonar
Model: E70654
Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into
a powerful all-in-one fishing system. Plan your next offshore adventure and get
underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and
keypad experience made possible by the intuitive LightHouse operating system.
Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an
integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish
finder, radar, and video are integrated seamlessly and faster with the super
intuitive LightHouse operating system.
Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable
touchscreen control, enhanced colors, and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display
brightness for day and evening lighting conditions.
Plan and plot your course with HybridTouch™ control and take command with
reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated
Evolution autopilot keypad or user-programable soft keys.
RealVision MAX ups your fish-finding game with increased range, better
resolution, and sharper fish targets.
Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision,
SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for
coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.
Discover More
Created from official hydrographic chart sources, you can trust LightHouse
Charts for maximum readability, intuitive navigation, and superior quality.
|
Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with
Doppler target tracking and radar/chart overlay.
|
Turn Night Into Day
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe
and secure so you can boat with confidence.
|
Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS,
waypoints, and chart objects overlaid on high-definition video.
|
Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration
with Mercury SmartCraft and Yamaha Command Link engines.
|
Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and
Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen
with HDMI output.
|
Stay Connected
Add the YachtSense Link router and keep your system connected onboard and
off with the Raymarine mobile App.
|
Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or
tablet with the Raymarine Mobile App.
|
Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 Pro with third-party apps from our
marine technology partners.
|
Specifications
|
PHYSICAL
|
|
Dimensions
(Trunnion mounted)
|
Height:
186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables):
234.9 mm (9.25 in)
|
|
Dimensions
(Surface/Flush mounted)
|
Height:
173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables):
234.9 mm (9.25 in)
|
|
CONNECTIONS
|
|
Ethernet
connection
|
2 RayNet
(10/100/1,000 Mbits/s) ports
|
|
NMEA 2000
connection
|
DeviceNet
connector
|
|
Wi-Fi
|
Multiband -
2.4GHz, and 5Ghz 802.11b/g/n
|
|
Bluetooth
|
v4.0
|
|
Accessory
connection
|
USB Micro B
|
|
Internal
storage
|
64GB Solid
State
|
|
External
storage
|
2 front
mounted MicroSDXC card slots
|
|
Digital
Video and Audio
|
HDMI Out
Micro connector type D
|
|
Analog
video connections
|
BNC Analog
video input (on power cable)
|
|
Analog
audio connections
|
RCA
connectors via power cable
|
|
External
GPS anternna
|
TNC
connector
|
|
POWER
|
|
Power
consumption @ 12 V dc
|
33.12 W
|
|
Power
consumption @ 24 V dc
|
30.96 W
|
|
Operating
voltage range
|
8 V dc to
32 V dc
|
|
Nominal
supply voltage
|
12 V dc /
24 V dc
|
|
Off current
@ 12 V dc
|
11 mA (0.13
W)
|
|
Off current
@ 24 V dc
|
18 mA (0.43
W)
|
|
LEN (NMEA
2000 Load Equivalency Number)
|
1
|
|
Current
|
5 A
|
|
Fuse rating
|
15 A
|
|
ENVIRONMENTAL
|
|
Operating
temperature
|
-25°C to
+55°C (-13°F to 131°F)
|
|
Storage
temperature
|
-30°C to
+70°C (-22°F to 158°F)
|
|
Relative
humidity
|
Up to 93% @
40°C (104°F)
|
|
Waterproof
rating
|
IPx6, IPx7
|
|
LCD
|
|
Size
(diagonal)
|
9.0"
|
|
Resolution
|
1280 x 720
HD
|
|
Viewing
angle
|
Top 88° /
Bottom 88° / Left 88° / Right 88°
|
|
Type
|
IPS
(In-Plane Switching)
|
|
Color depth
|
24-bit
|
|
Illumination
|
1300 nits /
1300 cd/m2
|
|
Number of
simultaneous touches
|
1 to 16
|
|
GPS (GNSS)
|
|
Position
Accuracy
|
Without
SBAS: ? 15 metres 95% of the time, With SBAS: ? 5 metres 95% of the time
|
|
Geodetic
Datum
|
WGS-84
(alternatives can be selected on the MFD)
|
|
Satellite
Differential Type (SBAS)
|
WAAS
(United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
|
|
Channels
|
Track up to
28 satellites simultaneously
|
|
Antenna
|
Internal -
Ceramic chip mounted near top of unit
|
|
GNSS
compatibility
|
GPS,
Galileo, GLONASS, Beidou
|
|
Almanac
Update
|
Automatic
|
|
Refresh
rate
|
10 Hz (10
times per second)
|
|
SONAR
|
|
Power
output
|
RealVision
MAX high CHIRP sonar channel: 600 Watts RMS
Traditional dual channel CHIRP channel: 1kW RMS
|
|
Sonar
channels
|
RealVision
MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and
RealVision 3D (350kHz)
1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
|
|
RealVision
MAX Depth range
|
25-pin
RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft),
DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m
(300 ft)
|
|
1 kW Depth
range
|
11 pin 1kW
connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using
a 1kW transducer)
|
|
Connections
|
1x 25-pin
RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW
transducer connector
|
What's in the Box:
- Axiom 2 Pro 9 RVM
- Suncover
- Gasket
- Trunnion knobs (x 2)
- Trunnion bracket (Axiom 2
Pro 9 and 12 Only)
- Optional grounding
connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng
adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet
(Female) network cable 2 m (6.56 ft)
- Mounting fixings x4
- Documentation
- Power/Video/Audio cable 1.5
m (4.92 ft)
|
WARNING:
This product can expose you to chemicals including Di-n-hexyl Phthalate (DnHP)
which is known to the State of California to cause reproductive harm, and
Vinyl Chloride which is known to the State of California to cause cancer. For
more information go to
